Trade Discount 25%
Motor Circuit Protector 16A | 690V | 100kA Breaking Capacity | IP2X by NHP
Motor circuit protector with 16A current and 690V voltage—ideal for industrial and commercial motor protection. Built for reliability, with 100kA breaking capacity and IP2X protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

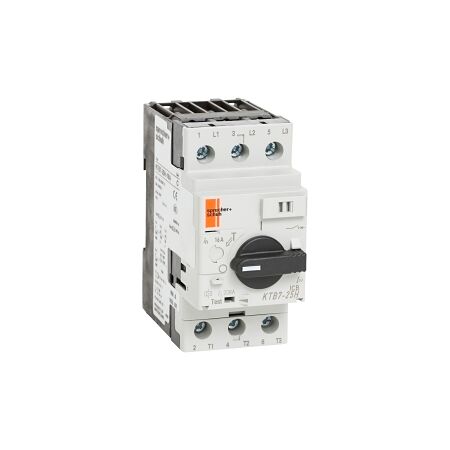

Product Name/Title: S+S KT7 Motor Circuit Protector 16A
Brand: NHP
SKU: KTB725H16A
Alternatively Known As: Motor Circuit Breaker, Motor Protection Circuit Breaker, Circuit Protector
Technical Specifications
- Rated Permanent Current: 16 A
- Max Rated Operation Voltage: 690 V
- Rated Operation Power at AC 3, 400 V: 7.5 kW
- Number of Poles: 3
- Degree of Protection: IP2X
- Max Tightening Torque: 2.5 Nm
- Type of Control Element: Turn handle
- Type of Electrical Connection: Screw connection
- Dimensions (H x L x W): 90mm x 84.5mm x 45mm
- Weight: 0.36 kg
Key Features
- Magnetic switch-off technique for reliable operation.
- Rated short circuit breaking capacity of 100 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection in manufacturing and processing plants
- Commercial: Equipment protection in commercial facilities
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Enhances safety and reliability in electrical systems, reducing the risk of equipment failure.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S KT7 Motor Circuit Protector 16A is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable motor protection.
Non-Returnable & Non-Cancellable
