Motor Circuit Protector 25A | 65kA Breaking Capacity | IP2X Protection by NHP
Motor circuit protector with 25A rated current and 65kA short circuit capacity—ideal for industrial and commercial motor protection. Built for reliability, with IP2X protection and screw connection for secure installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

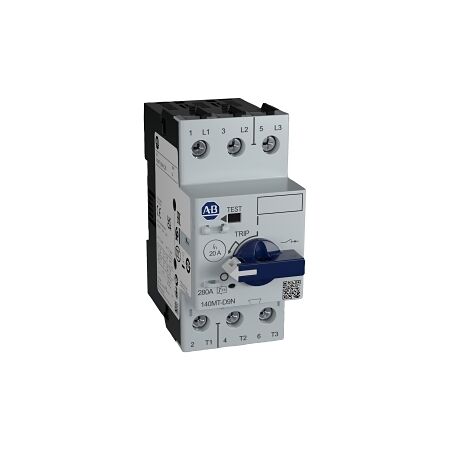

Product Name/Title: Allen-Bradley 140MT Motor Circuit Protector 25A
Brand: NHP
SKU: 140MTD9NC25
Alternatively Known As: Motor Circuit Breaker, Motor Protection Circuit Breaker, 140MTD9NC25
Technical Specifications
- Rated Permanent Current: 25 A
- Max Rated Operation Voltage: 690 V
- Rated Short Circuit Breaking Capacity: 65 kA at 400 V AC
- Rated Operation Power at AC 3 400 V: 11 kW
- Type of Control Element: Turn handle
- Type of Electrical Connection: Screw connection
- Number of Poles: 3
- Degree of Protection: IP2X
- Max Tightening Torque: 2.5 Nm
- Dimensions (H x L x W): 96.3mm x 93.7mm x 45mm
- Weight: 0.41 kg
Key Features
- Magnetic switch-off technique for reliable operation.
- Rated permanent current of 25 A.
- Rated short circuit breaking capacity of 65 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection in various applications
- Commercial: Equipment requiring circuit protection
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for efficient operation, reducing energy waste.
Warranty Information
Standard warranty applies.
Available Now
The Allen-Bradley 140MT Motor Circuit Protector 25A is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable motor protection.
