Motor Circuit Protector 25A | 690V | 100kA Breaking Capacity | IP2X by NHP
Motor circuit protector with 25A rated current and 100kA breaking capacity—ideal for industrial and commercial motor protection. Built for safety and reliability, with IP2X protection and screw connection for secure installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

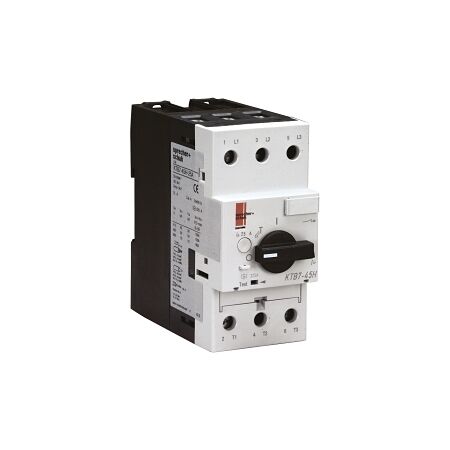

Product Name/Title: S+S KT7 Motor Circuit Protector 25A
Brand: NHP
SKU: KTB745H25A
Alternatively Known As: Motor Protection Circuit Breaker, Circuit Protector, Motor Circuit Breaker
Technical Specifications
- Rated Permanent Current: 25 A
- Max Rated Operation Voltage: 690 V
- Rated Operation Power at AC 3, 400 V: 11 kW
- Number of Poles: 3
- Degree of Protection: IP2X
- Max Tightening Torque: 3.5 Nm
- Type of Control Element: Turn handle
- Type of Electrical Connection: Screw connection
- Dimensions (H x L x W): 111.4mm x 114.5mm x 54mm
- Weight: 0.78 kg
Key Features
- Rated permanent current of 25 A.
- Magnetic switch-off technique for reliable operation.
- Rated short-circuit breaking capacity of 100 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection in manufacturing and processing plants
- Commercial: Equipment protection in commercial facilities
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Enhances safety and reliability in electrical systems, reducing the risk of equipment failure and associated waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S KT7 Motor Circuit Protector 25A is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable motor protection.
