Motor Circuit Protector 45A | 690V | 65kA Breaking Capacity | IP2X by NHP
Motor circuit protector with 45A rated current and 65kA short-circuit capacity—ideal for industrial and commercial motor protection. Built for reliability, with IP2X protection and screw connection for secure installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

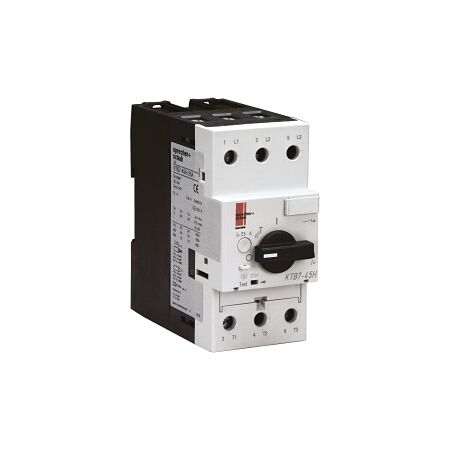

Product Name/Title: S+S KT7 Motor Circuit Protector 45A
Brand: NHP
SKU: KTB745H45A
Alternatively Known As: Motor Circuit Breaker, Motor Protection Circuit Breaker, Circuit Protector
Technical Specifications
- Rated permanent current: 45 A
- Max rated operation voltage: 690 V
- Rated operation power at AC 3, 400 V: 22 kW
- Number of poles: 3
- Degree of protection: IP2X
- Max tightening torque: 3.5 Nm
- Type of control element: Turn handle
- Type of electrical connection: Screw connection
- Dimensions (H x L x W): 111mm x 115mm x 54mm
- Weight: 0.78 kg
Key Features
- Rated permanent current of 45 A.
- Magnetic switch-off technique for reliable operation.
- Rated short-circuit breaking capacity of 65 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection in manufacturing and processing plants
- Commercial: Equipment protection in commercial facilities
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Enhances safety and reliability in motor operations, reducing the risk of equipment failure.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S KT7 Motor Circuit Protector 45A is available now for immediate purchase, ideal for industrial and commercial applications.
