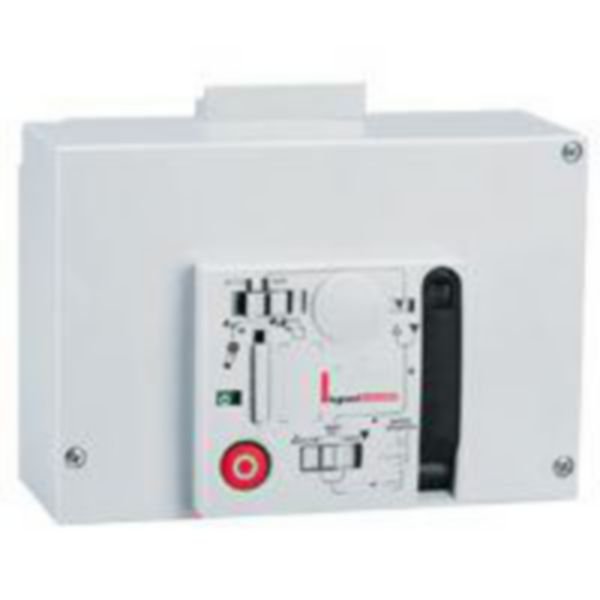

Motor-Driven Handle for DPX 1250 & 1600 | Front Operated | 24V AC/DC | Up to 1600A | @EA of 1 | by Legrand
The Motor-Driven Handle for DPX 1250 and 1600 is designed for seamless control in industrial electrical panels. Operating on 24V AC/DC, this front-operated handle is perfect for high current applications up to 1600A, ensuring safety and efficiency in switchboards and power cabinets. Ideal for qualified electricians, it enhances remote operation and reduces manual intervention.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Motor-Driven Handle for DPX 1250 & 1600 | Front Operated | 24V AC/DC | Up to 1600A | @EA of 1 | by Legrand
Brand: Legrand
SKU: 026119
Alternatively Known As: Motorized handle for DPX 1250, Motor drive handle for DPX 1600, Motor operated switch handle, Legrand DPX motor handle
Technical Specifications
- Type of switch drive: Motor drive
- Rated control supply voltage AC 50 Hz: 24 V
- Rated control supply voltage AC 60 Hz: 24 V
- Rated control supply voltage DC: 24 V
- Voltage type for actuating: AC/DC
- Compatible with DPX 1250 and DPX 1600 circuit breakers
- Front operated design
- Dimensions (H x L x W): 200mm x 100mm x 150mm
- Weight: 5 kg
Key Features
- Motor-driven handle designed for DPX 1250 and 1600 circuit breakers
- Front operated for easy access and control
- Operates on 24 V AC/DC control supply voltage
- Suitable for rated current up to 1600 A
- Customer assembled accessory for DPX³ 1600 equipment
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with motor-driven switchgear accessories to ensure safety and compliance.
Applications
- Control and signalling in switchboards and power cabinets
- Industrial electrical panels requiring motorized switching
- High current electrical distribution systems up to 1600 A
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables remote operation reducing the need for manual intervention and improving safety
- Supports efficient electrical distribution management, potentially reducing energy losses
Warranty Information
Standard Legrand warranty applies; typically 1 year against manufacturing defects.
Available Now
The Legrand Motor-Driven Handle for DPX 1250 and 1600 is available for immediate purchase, ideal for industrial and commercial electrical distribution applications.
