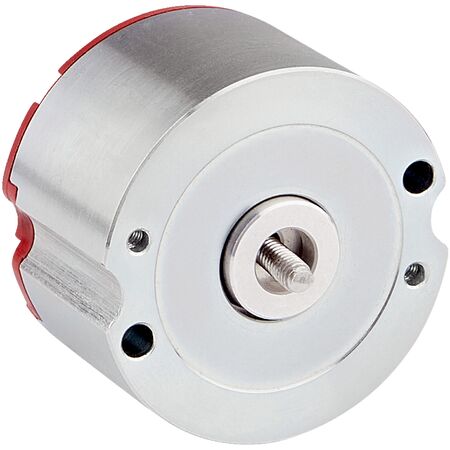

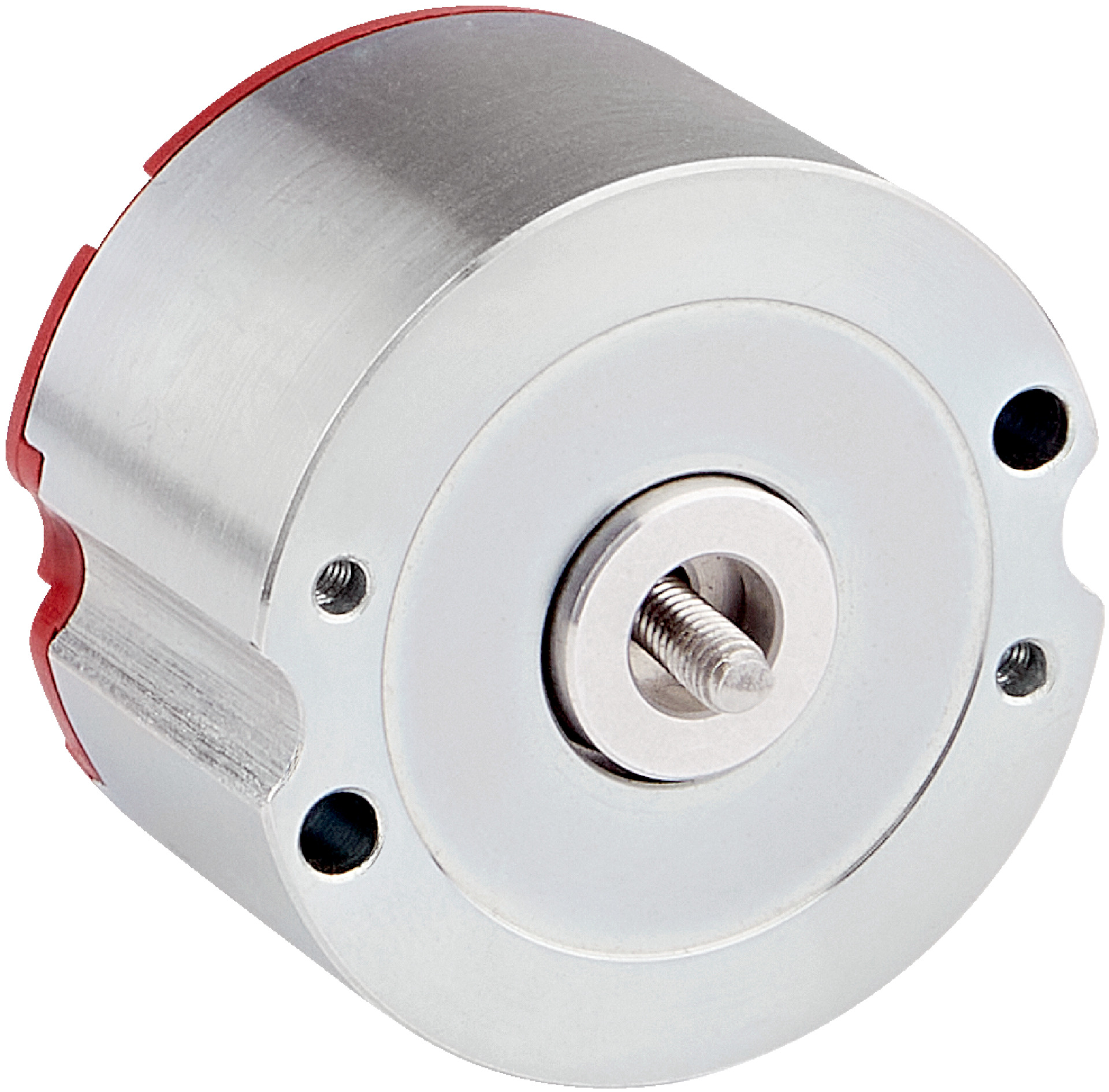

Motor Encoder ELM35-0CA0A024A | 24-Bit Resolution | BiSS C Interface | IP20 Rated | by SICK
The ELM35-0CA0A024A motor encoder delivers exceptional 24-bit position resolution and ±120″ system accuracy, making it ideal for industrial automation and robotics. With a BiSS C communication interface and a robust IP20 enclosure, this encoder ensures reliable performance in demanding environments, optimizing motor control and reducing energy waste.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Position resolution: 24 bit per revolution
- System accuracy: ±120″ typical
- Signal noise (σ): 10″
- Number of absolute ascertainable revolutions: 4,096
- Available memory area: 2,048 Byte
- Communication interface: BiSS C
- Connection type: Male connector, 6-pin
- Recommended supply voltage: 5 V
- Current consumption: Max. 150 mA
- Shaft version: Blind hollow shaft
- Shaft diameter: 6 mm
- Operating speed: 6,000 min⁻¹ continuous, 7,500 min⁻¹ short-term
- Angular acceleration: -100,000 rad/s²
- Permissible static movement: ±0.5 mm axial, ±0.1 mm radial
- Permissible dynamic movement: ±0.05 mm radial
- Operating temperature range: –20 °C to +105 °C
- Storage temperature range: –20 °C to +105 °C
- Relative humidity: 90%, condensation not permitted
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 5 Hz to 2,000 Hz
- EMC compliance: EN 61000-6-2:2016, EN 61000-6-4:2006, IEC 61000-6-7:2014
- Enclosure rating: IP20
- Dimensions (H x L x W): 35mm x 50mm x 35mm
- Weight: 0.1 kg
Key Features
- 24-bit position resolution per revolution
- System accuracy ±120″ with typical mounting tolerances
- BiSS C communication interface
- Blind hollow shaft with 6 mm diameter
- Operating speed up to 6,000 min⁻¹ continuous, 7,500 min⁻¹ short-term
- IP20 enclosure rating
- Operating temperature range from –20 °C to +105 °C
- Low current consumption max. 150 mA
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to manufacturer instructions.
Applications
- Industrial automation for precise motor position feedback
- Robotics requiring high-resolution rotary position sensing
- Machine tools and manufacturing equipment
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- High precision feedback reduces energy waste by optimizing motor control
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK ELM35-0CA0A024A motor feedback system is available for immediate purchase, ideal for industrial automation and motor control applications.
