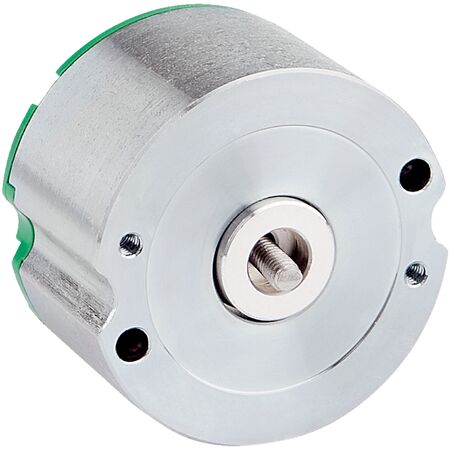

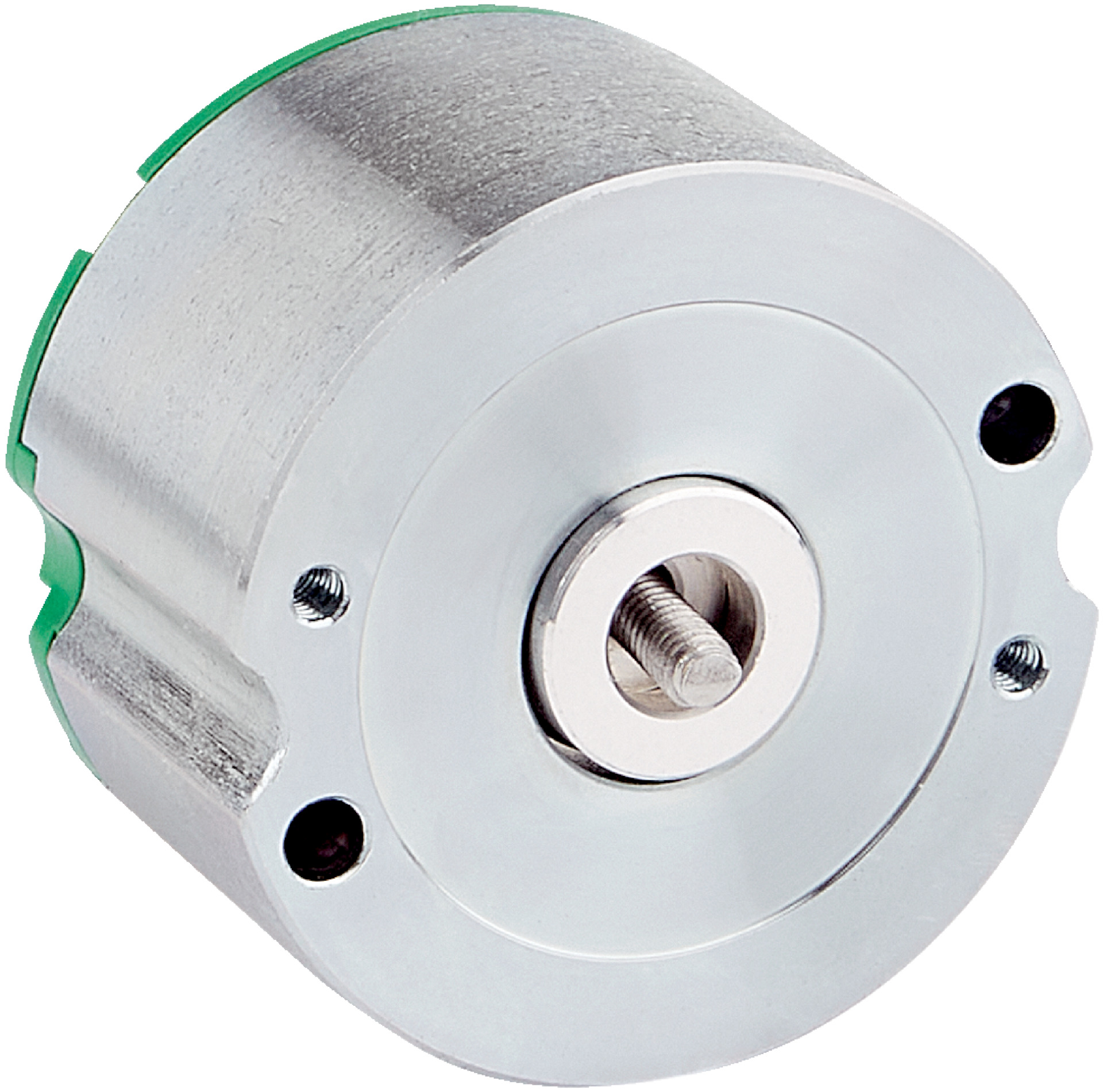

Motor Encoder ELS35-0CA0A024A | 24 Bit Resolution | BiSS C Interface | IP20 Rated | by SICK
The ELS35-0CA0A024A motor encoder delivers exceptional performance with a 24-bit position resolution and BiSS C communication interface, making it ideal for industrial automation and robotics. Designed for precise motor position feedback, it operates at speeds up to 6,000 min⁻¹ and withstands high shocks and vibrations, ensuring reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Position resolution: 24 bit per revolution
- System accuracy: ±120″ typical
- Signal noise (σ): 10″
- Available memory area: 2,048 Byte
- Communication interface: BiSS C
- Connection type: Male connector, 6-pin
- Recommended supply voltage: 5 V
- Max current consumption: 150 mA
- Shaft version: Blind hollow shaft
- Shaft diameter: 6 mm
- Operating speed: 6,000 min⁻¹ continuous, 7,500 min⁻¹ short-term
- Angular acceleration: -100,000 rad/s²
- Permissible static movement: ±0.5 mm axial, ±0.1 mm radial
- Permissible dynamic movement: ±0.05 mm radial
- Operating temperature range: –20 °C to +105 °C
- Storage temperature range: –20 °C to +105 °C
- Relative humidity: 90%, no condensation
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 5 Hz to 2,000 Hz
- EMC compliance: EN 61000-6-2:2016, EN 61000-6-4:2006, IEC 61000-6-7:2014
- Enclosure rating: IP20
- Dimensions (H x L x W): 35mm x 50mm x 35mm
- Weight: 0.1 kg
Key Features
- 24 bit position resolution per revolution
- System accuracy ±120″ with typical mounting tolerances
- BiSS C communication interface
- Blind hollow shaft with 6 mm diameter
- Operating speed up to 6,000 min⁻¹ continuous, 7,500 min⁻¹ short-term
- High resistance to shocks (100 g, 6 ms) and vibrations (20 g, 5 Hz to 2,000 Hz)
- Operating temperature range from –20 °C to +105 °C
- IP20 enclosure rating
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct mounting and electrical connection.
Applications
- Industrial automation for precise motor position feedback
- Robotics requiring high-resolution position sensing
- Machine tools and manufacturing equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High reliability reduces waste and replacement frequency
- Energy-efficient operation supports sustainable industrial processes
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK ELS35-0CA0A024A motor feedback system is available for immediate purchase, ideal for industrial automation and precision motor control applications.
