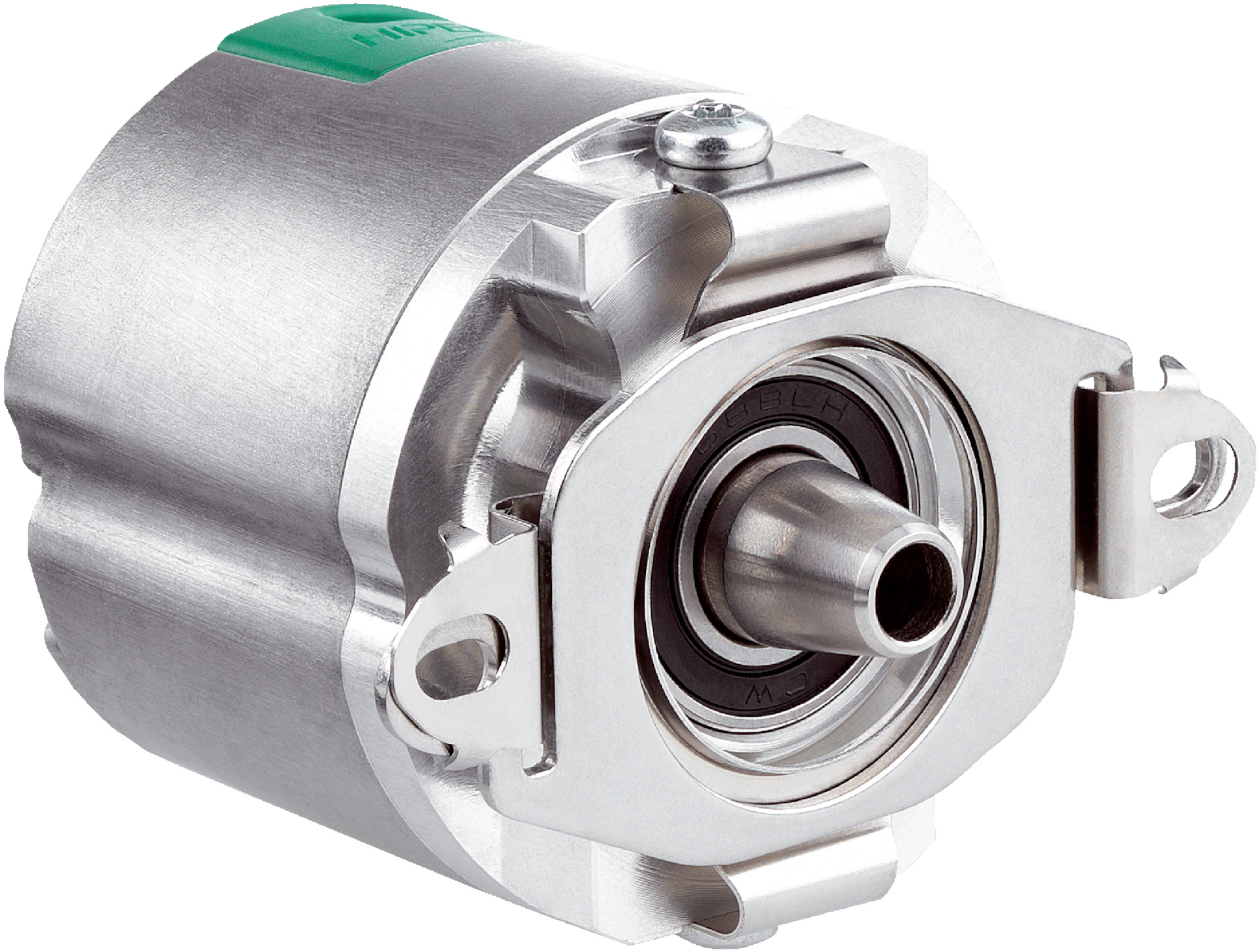

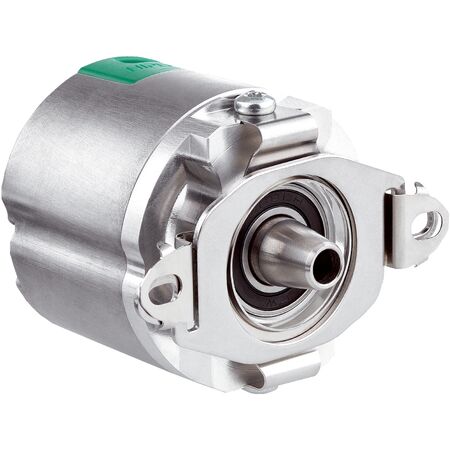

Motor Feedback System EDS35-0KF0A020A | 20 Bit Resolution | HIPERFACE DSL Interface | IP40 Rated | by SICK
The Motor Feedback System EDS35-0KF0A020A offers precise position feedback with a 20-bit resolution and a HIPERFACE DSL communication interface. Designed for industrial automation and robotics, it operates in extreme temperatures from -40 °C to +115 °C, ensuring reliability in demanding environments. With an IP40 rated enclosure and a long ball bearing life of 50,000 hours, this encoder is perfect for safety-critical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Motor Feedback System EDS35-0KF0A020A | 20 Bit Resolution | HIPERFACE DSL Interface | IP40 Rated | by SICK
Brand: SICK
SKU: 1090708
Alternatively Known As: Motor feedback encoder, optical rotary encoder, HIPERFACE DSL encoder, motor position sensor
Technical Specifications
- Position resolution: 20 bit per revolution
- System accuracy: ± 50 seconds of arc
- Signal noise (σ): ± 3 seconds of arc
- Available memory area: 8,192 Byte
- Communication interface: HIPERFACE DSL®
- Initialization time: ≤ 500 ms
- Supply voltage: 7 V to 12 V
- Current consumption: ≤ 150 mA
- Operating temperature range: –40 °C to +115 °C
- Storage temperature range: –40 °C to +125 °C
- Enclosure rating: IP40 (with cover and connector)
- Operating speed: ≤ 12,000 min⁻¹
- Moment of inertia of rotor: 5 gcm²
- Start-up torque: ≤ 0.4 Ncm at +20 °C
- Permissible static axial movement: ± 1 mm
- Permissible dynamic radial movement: ± 0.1 mm
- Life of ball bearings: 50,000 hours at 6,000 min⁻¹
- Dimensions (H x L x W): 35mm x 50mm x 35mm
- Weight: 0.1 kg
Key Features
- Optical measurement principle with 20 bit resolution per revolution
- System accuracy of ± 50 seconds of arc
- Signal noise ± 3 seconds of arc
- HIPERFACE DSL® communication interface
- Operating temperature range from –40 °C to +115 °C
- IP40 rated enclosure when cover and connector are attached
- Tapered shaft with stator coupling
- High operating speed up to 12,000 min⁻¹
- Low start-up torque of ≤ 0.4 Ncm at +20 °C
- Long ball bearing life of 50,000 hours at 6,000 min⁻¹
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with motor feedback systems and electrical safety standards.
Applications
- Industrial automation for precise motor position feedback
- Robotics requiring high-resolution optical position sensing
- Machine tools and manufacturing equipment
- Safety-related control systems in machinery
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with supply voltage between 7 V and 12 V
- Durable design reduces waste and replacement frequency
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK EDS35-0KF0A020A motor feedback system is available for immediate purchase, ideal for industrial automation and safety-critical applications.
