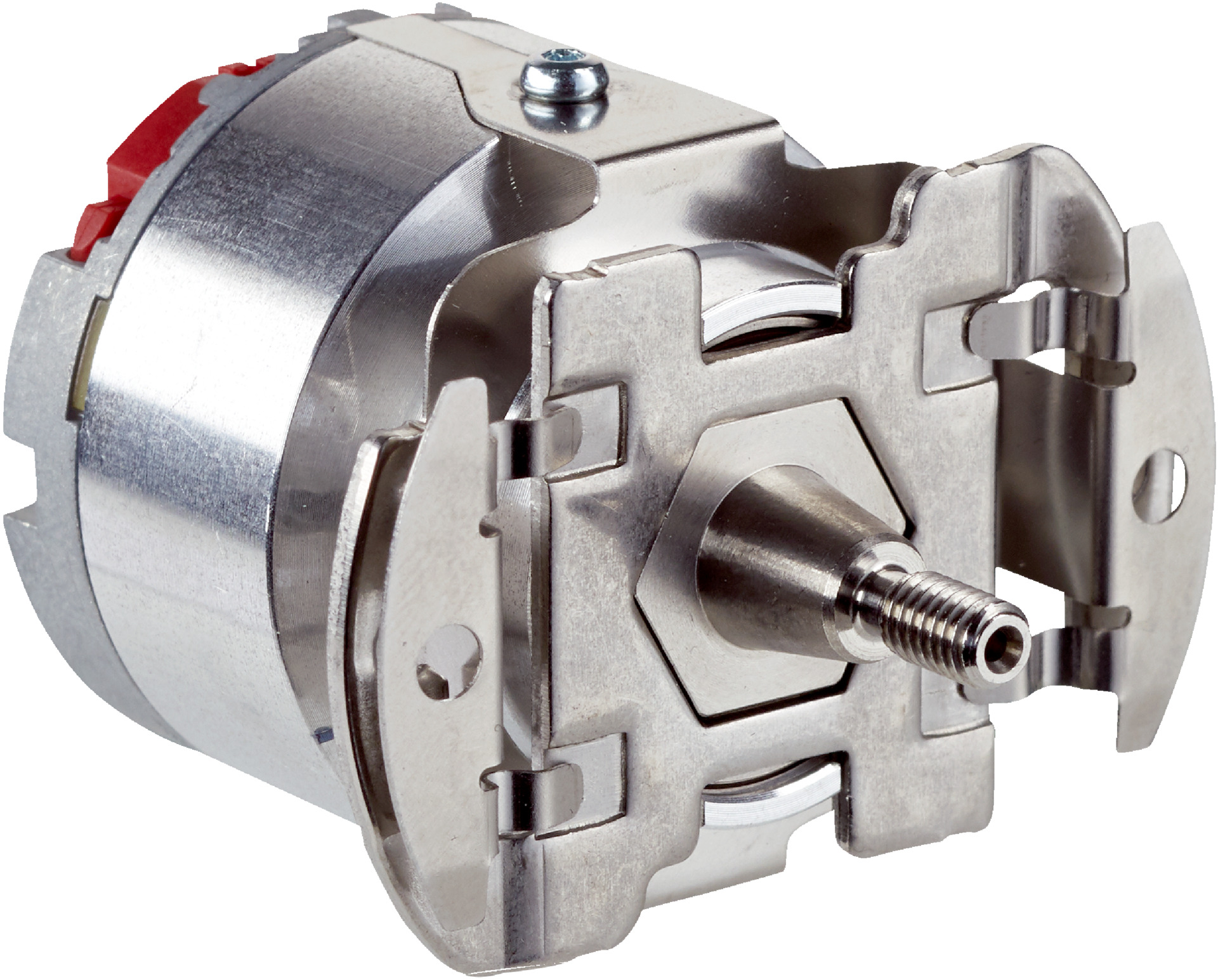

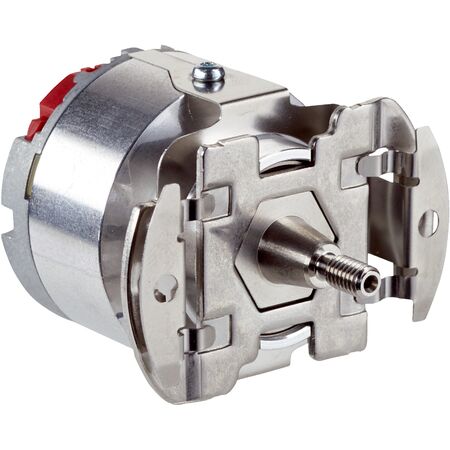

Product Name/Title: Motor Feedback System EKM36-0KF0B0S02 | 17 Bit Resolution | HIPERFACE DSL Interface | IP40 Enclosure | by SICK
Brand: SICK
SKU: 1084837
Alternatively Known As: Motor feedback encoder, optical rotary encoder, HIPERFACE DSL encoder, motor position sensor
Technical Specifications
- Position resolution per revolution: 17 bit
- System accuracy: ±120 seconds of arc
- Signal noise (σ): ±5 seconds of arc
- Number of absolute ascertainable revolutions: 4,096
- Available memory area: 8,192 Byte
- Measurement step per revolution: 131,072
- Measurement principle: Optical
- Type of code for absolute value: Binary
- Code sequence: Increasing for clockwise rotation when viewed from direction A
- Communication interface: HIPERFACE DSL®
- Initialization time: Max. 500 ms
- Measurement external temperature resistance: 32 bit value, 0 to 209,600 Ω at –40 °C to +160 °C
- Connection type: Male connector, 4-pin
- Supply voltage: 7 V to 12 V (recommended 8 V)
- Warm-up time voltage ramp: Max. 180 ms
- Current consumption: ≤150 mA
- Output frequency for digital position value: 0 kHz to 75 kHz
- Shaft version: Tapered shaft
- Flange type / stator coupling: Stator coupling
- Weight: 0.1 kg
- Moment of inertia of rotor: 4.5 gcm²
- Operating speed: ≤9,000 min⁻¹
- Angular acceleration: ≤500,000 rad/s²
- Operating torque: 0.2 Ncm
- Start up torque: 0.3 Ncm
- Permissible movement static: ±0.1 mm radial, ±0.5 mm axial
- Permissible movement dynamic: ±0.05 mm radial, ±0.1 mm axial
- Life of ball bearings: 3.6 x 10^9 revolutions
- Operating temperature range: –20 °C to +115 °C
- Storage temperature range: –40 °C to +125 °C
- Relative humidity: 90%, condensation not permitted
- Resistance to shocks: 100 g, 6 ms
- Frequency range of resistance to vibrations: 50 g, 10 Hz to 2,000 Hz
- EMC: According to EN 61000-6-2, EN 61000-6-4 and IEC 61326-3
- Enclosure rating: IP40 with mating plugs inserted and cover closed
- Dimensions (H x L x W): 36mm x 50mm x 36mm
- Weight: 0.1 kg
Key Features
- Optical measurement principle with 17 bit resolution per revolution
- System accuracy of ±120 seconds of arc
- Signal noise ±5 seconds of arc
- 4,096 absolute ascertainable revolutions
- Memory area of 8,192 Byte
- Measurement step per revolution: 131,072
- Communication via HIPERFACE DSL® interface
- Male 4-pin connector with supply voltage 7 V to 12 V
- Operating speed up to 9,000 min⁻¹
- Operating temperature range from –20 °C to +115 °C
- IP40 enclosure rating with mating plugs inserted and cover closed
- Mean time to dangerous failure (MTTFD) of 155 years (EN ISO 13849)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with motor feedback systems and electrical safety standards to ensure proper integration and compliance.
Applications
- Industrial automation for precise motor position feedback
- Robotics requiring high-resolution optical position measurement
- Machine tools and manufacturing equipment
- Safety-related control systems in machinery
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- High reliability reduces maintenance and replacement frequency, minimizing waste
- Energy-efficient operation with low current consumption (≤150 mA)
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK EKM36-0KF0B0S02 motor feedback system is available for immediate purchase, ideal for industrial automation and safety-critical applications.
