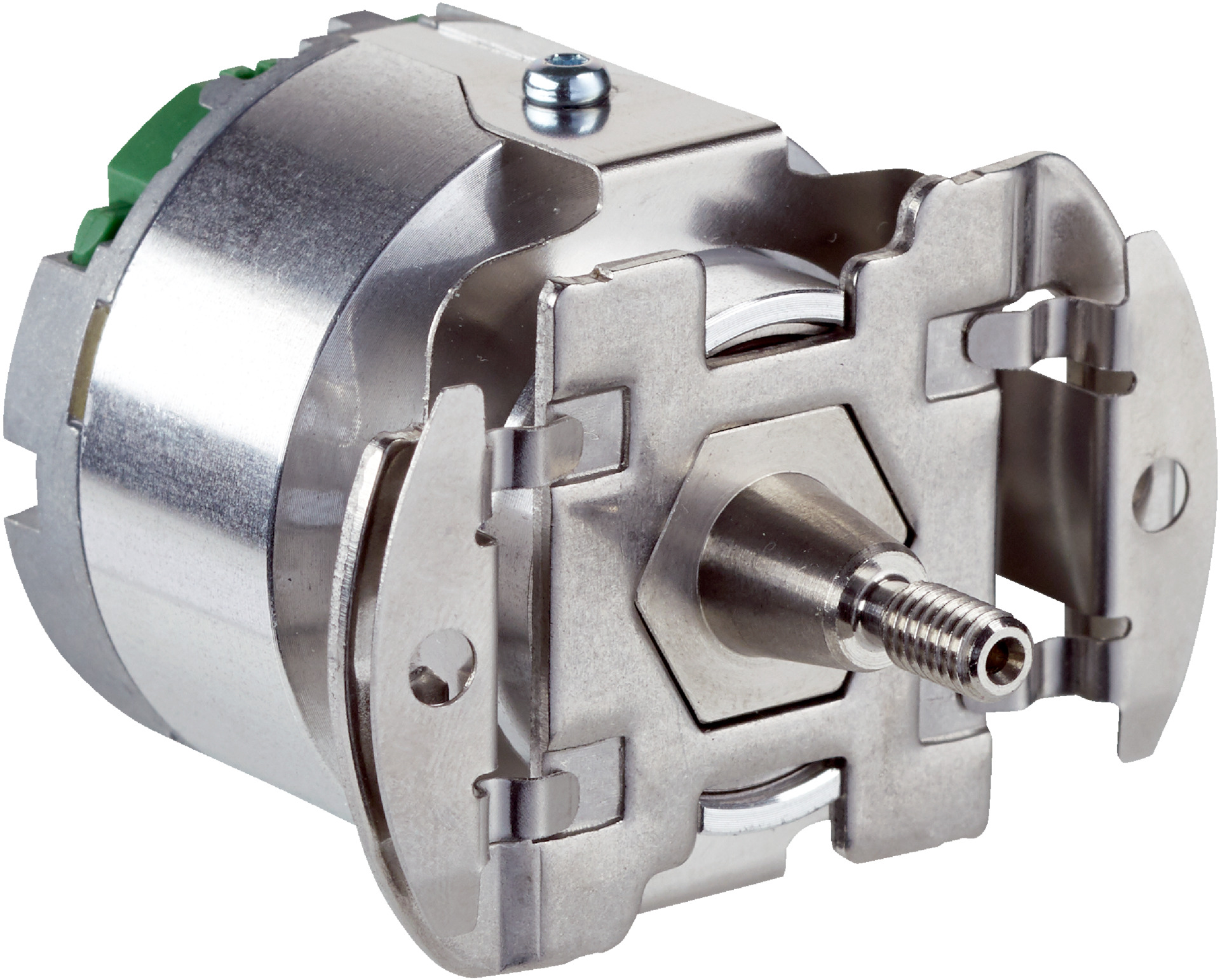

Motor Feedback System EKS36-0KF0B0S02 | 17-Bit Resolution | HIPERFACE DSL® Interface | IP40 Rated | by SICK
The Motor Feedback System EKS36-0KF0B0S02 offers precise motor position feedback with a 17-bit resolution and HIPERFACE DSL® communication interface. Designed for industrial automation and robotics, it operates at speeds up to 12,000 min⁻¹ and features an IP40 enclosure rating, ensuring reliability in demanding environments. Ideal for machine tools and safety-related control systems, this encoder minimizes electronic waste with its high reliability and low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Motor Feedback System EKS36-0KF0B0S02 | 17-Bit Resolution | HIPERFACE DSL® Interface | IP40 Rated | by SICK
Brand: SICK
SKU: 1084836
Alternatively Known As: Motor encoder, rotary encoder, optical encoder, motor position sensor, HIPERFACE encoder
Technical Specifications
- Position resolution per revolution: 17 bit
- System accuracy: ±120 seconds of arc
- Signal noise (σ): ±5 seconds of arc
- Number of absolute ascertainable revolutions: 1
- Available memory area: 8,192 Byte
- Measurement step per revolution: 131,072
- Measurement principle: Optical
- Type of code for absolute value: Binary
- Code sequence: Increasing for clockwise rotation when viewed from direction 'A'
- Communication interface: HIPERFACE DSL®
- Initialization time: Max. 500 ms
- Measurement external temperature resistance: 32 bit value, 0 ... 209,600 Ω at –40 °C ... +160 °C
- Connection type: Male connector, 4-pin
- Supply voltage: 7 V ... 12 V
- Recommended supply voltage: 8 V
- Current consumption: ≤150 mA
- Output frequency for digital position value: 0 kHz ... 75 kHz
- Shaft version: Tapered shaft
- Flange type / stator coupling: Stator coupling
- Moment of inertia of rotor: 4.5 gcm²
- Operating speed: ≤12,000 min⁻¹
- Angular acceleration: ≤500,000 rad/s²
- Operating torque: 0.2 Ncm
- Start up torque: 0.3 Ncm
- Permissible static movement: ±0.1 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.05 mm radial, ±0.1 mm axial
- Life of ball bearings: 3.6 x 10^9 revolutions
- Operating temperature range: –20 °C ... +115 °C
- Storage temperature range: –40 °C ... +125 °C
- Relative humidity: 90%, condensation not permitted
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibrations: 50 g, 10 Hz ... 2,000 Hz
- EMC compliance: EN 61000-6-2, EN 61000-6-4, IEC 61326-3
- Enclosure rating: IP40 with mating plugs inserted and cover closed
- Dimensions (H x L x W): 36mm x 50mm x 36mm
- Weight: 0.1 kg
Key Features
- Optical measurement principle with 17-bit resolution per revolution
- System accuracy of ±120 seconds of arc
- Signal noise ±5 seconds of arc
- HIPERFACE DSL® communication interface
- Operating speed up to 12,000 min⁻¹
- Operating temperature range from –20 °C to +115 °C
- IP40 enclosure rating with mating plugs inserted and cover closed
- Male 4-pin connector for electrical connection
- Low current consumption ≤150 mA
- High mean time to dangerous failure (MTTFD) of 155 years
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and automation systems to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for precise motor position feedback
- Robotics requiring high-resolution optical position measurement
- Machine tools and manufacturing equipment
- Safety-related control systems in machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High reliability reduces need for frequent replacements, minimizing electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK EKS36-0KF0B0S02 motor feedback system is available for immediate purchase, ideal for industrial automation and motor control applications.
