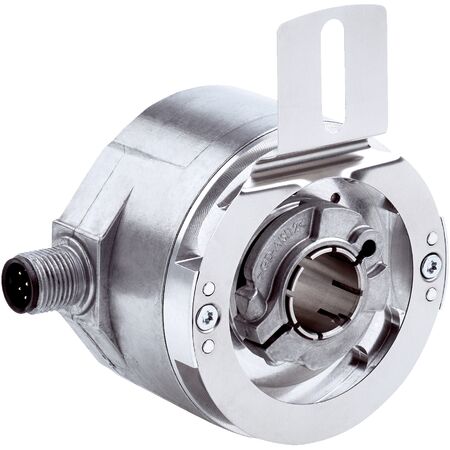

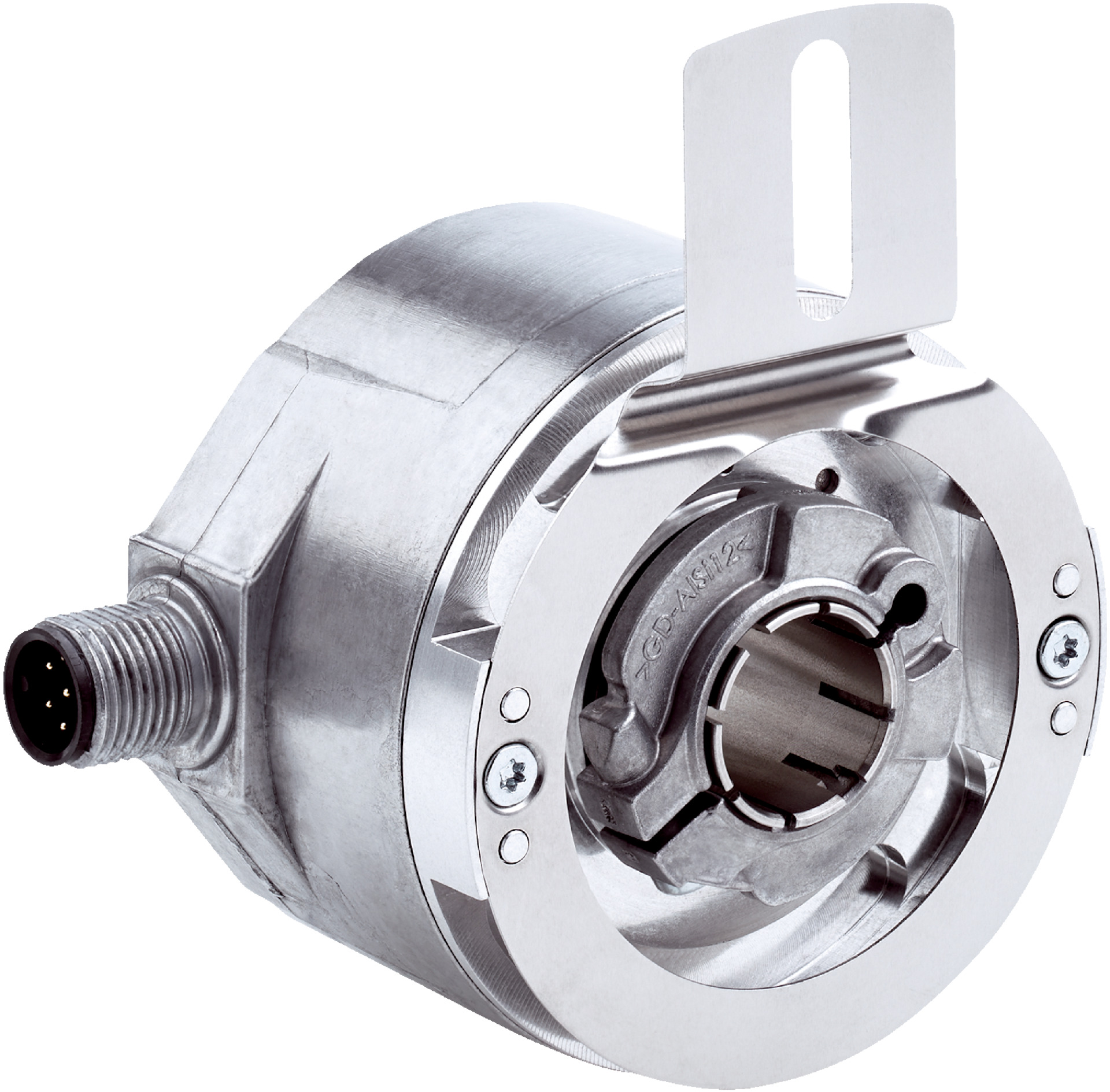

Product Name/Title: Motor Feedback System SFM60-HMBT1K02 | 1,024 Sine/Cosine Periods | 4,096 Absolute Revolutions | IP65 Rated | by SICK
Brand: SICK
SKU: 1088952
Alternatively Known As: Motor encoder, Absolute rotary encoder, HIPERFACE encoder, Shaft position sensor
Technical Specifications
- Sine/cosine periods per revolution: 1,024
- Absolute revolutions: 4,096
- Total steps: 134,217,728
- Measuring step: 0.3 seconds with 12-bit interpolation
- Integral non-linearity: ±45 seconds
- Differential non-linearity: ±7 seconds
- Operating speed (absolute position): ≤ 6,000 min⁻¹
- Memory area: 1,792 Byte
- System accuracy: ±52 seconds
- Code type: Binary
- Code sequence: Rising for clockwise shaft rotation
- Communication interface: HIPERFACE®
- Connection: Male M12, 8-pin radial connector
- Supply voltage: 7 V DC to 12 V DC (recommended 8 V DC)
- Current consumption: < 80 mA (no load)
- Output frequency sine/cosine: ≤ 200 kHz
- Shaft diameter: 12 mm stainless steel
- Flange material: Zinc diecast
- Housing material: Aluminum die cast
- Moment of inertia rotor: 40 gcm²
- Operating torque: 0.6 Ncm at +20 °C
- Start up torque: 0.8 Ncm at +20 °C
- Permissible static movement: ±0.3 mm axial, ±0.5 mm radial
- Permissible dynamic movement: ±0.2 mm axial, ±0.05 mm radial
- Life of ball bearings: 3.6 x 10⁹ revolutions
- Operating temperature: –40 °C to +115 °C
- Storage temperature: –40 °C to +115 °C
- Relative humidity: 90%, no condensation
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 with connector inserted
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- High resolution with 1,024 sine/cosine periods per revolution
- Absolute position measurement with 4,096 revolutions and 134,217,728 total steps
- System accuracy of ±52 seconds
- Operating speed up to 6,000 min⁻¹ for reliable absolute position
- Robust aluminum die cast housing with IP65 rating
- Through hollow shaft design with 12 mm stainless steel shaft
- Low current consumption below 80 mA
- Communication via HIPERFACE® interface
- Wide operating temperature range from –40 °C to +115 °C
- High resistance to shocks (100 g) and vibrations (20 g)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and mechanical mounting according to manufacturer guidelines.
Applications
- Industrial automation for precise motor position feedback
- Robotics requiring high accuracy shaft position sensing
- Machine tools and manufacturing equipment
- Motion control systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK SFM60-HMBT1K02 motor feedback system is available for immediate purchase, ideal for industrial automation and precision motor control applications.
