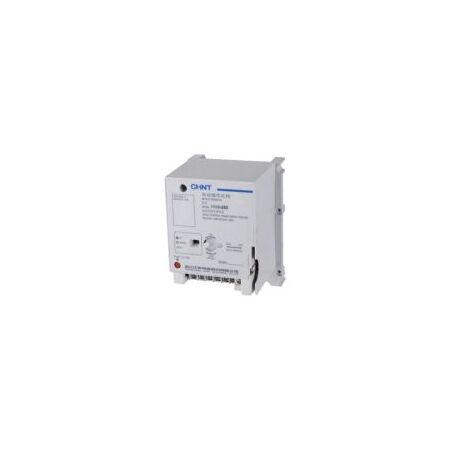

Motor Operator 380-415V AC to Suit NM8N 1250A MCCB Chint

BRAND: CABAC
SKU: 413496
$1,236.30 List price: $1,648.40
+ −
30 Days Return Electricians Unlock Trade Access
Chint motor operator features 380-415V AC supply to suit NM8N 1250A frame MCCB. Ideal for remote and automatic switching of the breaker.

Alternatively Known As: Motor-Driven Mechanism, MCCB Motor Operator, NM8N MOD Accessory

Technical Specifications
  • Accessory Type: Motor-driven mechanism for NM8N MCCB
  • Compatible Breaker: CHINT NM8N 1250A frame MCCB
  • Control Supply: 380–415V AC
  • Operating Function: Motorised opening and closing of the MCCB
  • Application: Remote and automatic circuit-breaker switching
  • MCCB System Voltage: Up to 690V AC, subject to the selected NM8N breaker configuration
  • Mechanical Compatibility: NM8N-1600 frame, 1250A rating
  • Fitted Assembly Envelope: Approximately 280 x 286 x 195 mm
  • Reference Designation: MOD motor operator accessory
  • Dimensions (H x L x W): 286mm x 280mm x 195mm
  • Weight: 3 kg
Key Features
  • Designed specifically for CHINT NM8N 1250A frame MCCBs
  • 380–415V AC motor supply suitable for nominal 400V control systems
  • Enables remote electrical operation of the circuit breaker
  • Supports automatic switching and integration with control panels or building management systems
  • Suitable for industrial, commercial and power-distribution switchboards
  • Compact accessory integrated with the front of the MCCB
  • Allows manual operation to remain available when correctly installed and configured
Professional Installation Requirements
  • Installation and commissioning should be performed by a licensed electrical contractor in accordance with AS/NZS 3000, the CHINT NM8N installation instructions and the switchboard manufacturer's requirements. Isolate and verify the circuit before fitting or servicing the motor operator.
Applications
  • Remote operation of NM8N 1250A moulded-case circuit breakers
  • Automatic transfer and changeover switchboards
  • Industrial power-distribution systems
  • Commercial building main switchboards
  • Generator and standby-power installations
  • Motor control centres and automated electrical panels
Standards & Compliance
  • AS/NZS 60947.2 for the associated low-voltage moulded-case circuit breaker assembly
  • AS/NZS 3000 for electrical installation, wiring and commissioning requirements
Environmental Benefits
  • Enables automated switching and control, which can support more efficient power-management strategies
  • Durable motorised construction can extend the service life of the associated MCCB and reduce replacement waste
  • The associated MCCB assembly contains recyclable metals such as copper and steel
  • Suitable for integration into energy-management and standby-power systems
Warranty Information

CHINT warranty policy for other low-voltage apparatus provides 27 months from the date of manufacture when purchased through authorised sales channels, subject to the applicable contract and warranty conditions.

Available Now

Available through authorised CHINT distributors in Australia.
