Motor Protection Circuit Breaker 0.4-0.63A | 100kA Breaking Capacity | IP2X by NHP
Motor protection circuit breaker with adjustable overload protection from 0.4 to 0.63A and high breaking capacity of 100kA—ideal for industrial and commercial applications. Built for reliable motor protection, with thermomagnetic switch-off technique.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

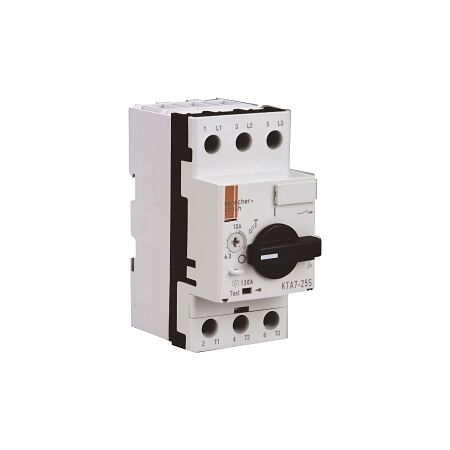

Product Name/Title: S+S KT7 Motor Protection Circuit Breaker 0.4 to 0.63A
Brand: NHP
SKU: KTA725S0P63A
Alternatively Known As: Motor Protection Circuit Breaker, KT7 Circuit Breaker
Technical Specifications
- Rated Permanent Current: 0.63 A
- Max Rated Operation Voltage: 690 V
- Rated Short Circuit Breaking Capacity: 100 kA
- Rated Operation Power at AC-3 400 V: 0.18 kW
- Number of Poles: 3
- Degree of Protection: IP2X
- Max Tightening Torque: 2.5 Nm
- Type of Control Element: Turn handle
- Type of Electrical Connection: Screw connection
- Dimensions (H x L x W): 90mm x 74.5mm x 45mm
- Weight: 0.32 kg
Key Features
- Thermomagnetic switch-off technique for reliable protection.
- Adjustable long-time overload protection from 0.4 to 0.63 A.
- High breaking capacity of 100 kA at 400 V AC.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection in various machinery and equipment
- Commercial: Electrical panels and distribution boards
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Enhances energy efficiency by preventing motor overload and failure.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S KT7 Motor Protection Circuit Breaker 0.4 to 0.63A is available now for immediate purchase. Ideal for industrial and commercial applications.
Non-Returnable & Non-Cancellable
