Motor Protection Circuit Breaker 0.63-1.0A | 100kA Breaking Capacity | IP20 by NHP
Motor protection circuit breaker with 0.63-1.0A range and 100kA breaking capacity—ideal for industrial and commercial machinery. Built for reliable operation, with IP20 protection and screw connection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

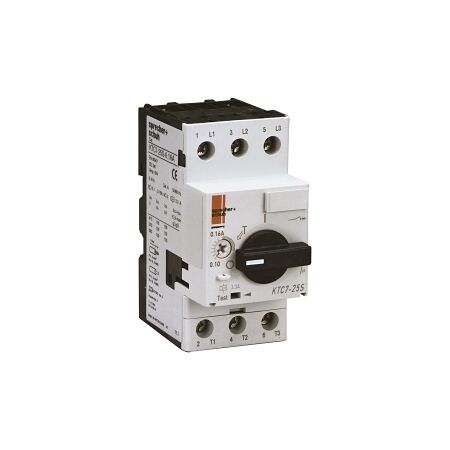

Product Name/Title: S+S KT7 Motor Protection Circuit Breaker 0.63 to 1.0A
Brand: NHP
SKU: KTC725S1A
Alternatively Known As: Motor Protection Circuit Breaker, KT7 Circuit Breaker, NHP Circuit Breaker
Technical Specifications
- Rated Permanent Current: 1 A
- Max Rated Operation Voltage: 690 V
- Rated Short Circuit Breaking Capacity: 100 kA at 400 V AC
- Rated Operation Power at AC 3 400 V: 0.25 kW
- Type of Control Element: Turn handle
- Type of Electrical Connection: Screw connection
- Number of Poles: 3
- Degree of Protection: IP20
- Max Tightening Torque: 2.5 Nm
- Dimensions (H x L x W): 91mm x 62mm x 45mm
- Weight: 0.32 kg
Key Features
- Magnetic switch-off technique for reliable operation.
- Rated short circuit breaking capacity of 100 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection in various machinery
- Commercial: Equipment requiring reliable circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Enhances safety in electrical systems, reducing the risk of fire and equipment damage.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S KT7 Motor Protection Circuit Breaker 0.63 to 1.0A is available now for immediate purchase, ideal for industrial and commercial applications.
