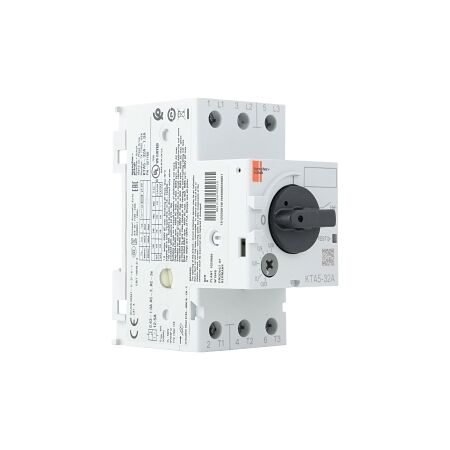

Motor Protection Circuit Breaker 0.63-1.0A | 690V | IP2X by NHP
Motor protection circuit breaker with 0.63 to 1.0A adjustable overload protection and 690V operation—ideal for industrial and commercial machinery. Built for safety with IP2X protection and thermomagnetic switch-off technique.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: S+S KT5 Motor Protection Circuit Breaker 0.63 to 1.0A
Brand: NHP
SKU: KTA532AB10
Alternatively Known As: Motor Protection Breaker, Circuit Breaker, Thermal Circuit Breaker
Technical Specifications
- Rated Permanent Current: 1 A
- Max Rated Operation Voltage: 690 V
- Rated Short Circuit Breaking Capacity: 100 kA at 400 V AC
- Rated Operation Power at AC 3, 400 V: 0.25 kW
- Type of Control Element: Turn handle
- Type of Electrical Connection: Screw connection
- Number of Poles: 3
- Max Tightening Torque: 2.5 Nm
- Dimensions (H x L x W): 90mm x 85.5mm x 45mm
- Weight: 0.25 kg
Key Features
- Thermomagnetic switch-off technique for reliable protection.
- Adjustable long-time overload protection from 0.63 to 1 A.
- IP2X degree of protection ensuring safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection in various machinery
- Commercial: Equipment requiring overload protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Enhances equipment longevity by preventing overload damage.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S KT5 Motor Protection Circuit Breaker 0.63 to 1.0A is available now for immediate purchase, ideal for industrial and commercial applications.
