Motor Protection Circuit Breaker 1.0-1.6A | 100kA Breaking Capacity | IP2X by NHP
Motor protection circuit breaker with 1.0 to 1.6A adjustable overload protection and 100kA breaking capacity—ideal for industrial and commercial applications. Built for reliable circuit protection, with thermomagnetic switch-off and IP2X rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

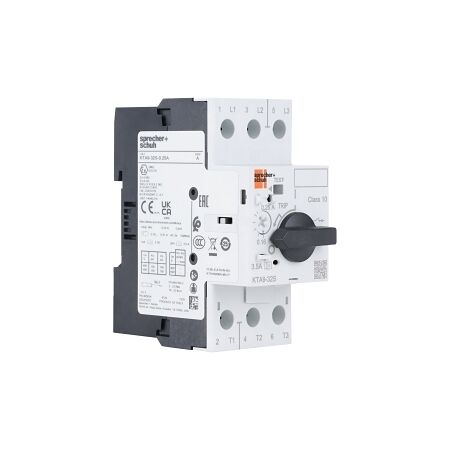

Product Name/Title: S+S KT9 Motor Protection Circuit Breaker KTA9 32S Frame C 1.0 to 1.6A
Brand: NHP
SKU: KTA932S1P6A
Alternatively Known As: Motor Protection Circuit Breaker, Circuit Breaker KTA9, NHP Motor Breaker
Technical Specifications
- Rated Permanent Current (Iu): 1.6 A
- Max Rated Operation Voltage (Ue): 690 V
- Rated Short Circuit Breaking Capacity (LCU) at 400 V AC: 100 kA
- Rated Operation Power at AC 3 400 V: 0.55 kW
- Type of Control Element: Turn handle
- Type of Electrical Connection of Main Circuit: Screw connection
- Number of Poles: 3
- Degree of Protection: IP2X
- Max Tightening Torque: 2.5 Nm
- Dimensions (H x L x W): 96.3mm x 83.4mm x 45mm
- Weight: 0.35 kg
Key Features
- Thermomagnetic switch-off technique for reliable protection.
- Adjustable long-time overload protection from 1 to 1.6 A.
- High breaking capacity of 100 kA at 400 V AC.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection in various machinery and equipment
- Commercial: Electrical systems requiring reliable circuit protection
Standards & Compliance
- Complies with AS/NZS 60950 for safety of electrical equipment.
Environmental Benefits
- Enhances safety in electrical installations, reducing the risk of fire and equipment damage.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The S+S KT9 Motor Protection Circuit Breaker KTA9 32S Frame C 1.0 to 1.6A is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable motor protection.
