Motor Protection Circuit Breaker 1.0-1.6A | Thermomagnetic | IP2X Safety by NHP
Motor protection circuit breaker with 1.0 to 1.6A adjustable overload protection and thermomagnetic switch-off—ideal for industrial and commercial machinery. Built for safety with IP2X protection and energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

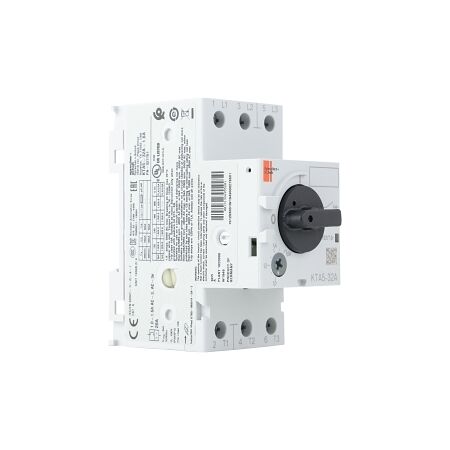

Product Name/Title: S+S KT5 Motor Protection Circuit Breaker 1.0 to 1.6A
Brand: NHP
SKU: KTA532AB16
Alternatively Known As: Motor Protection Circuit Breaker, KT5 Circuit Breaker
Technical Specifications
- Rated Permanent Current: 1.6 A
- Max Rated Operation Voltage: 690 V
- Rated Short Circuit Breaking Capacity: 100 kA at 400 V AC
- Rated Operation Power at AC 3, 400 V: 0.55 kW
- Type of Control Element: Turn handle
- Type of Electrical Connection: Screw connection
- Number of Poles: 3
- Max Tightening Torque: 2.5 Nm
- Dimensions (H x L x W): 90mm x 85.5mm x 45mm
- Weight: 0.28 kg
Key Features
- Thermomagnetic switch-off technique for reliable protection.
- Adjustable long-time overload protection from 1 to 1.6 A.
- IP2X degree of protection ensuring safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection in various machinery
- Commercial: Equipment requiring overload protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Enhances energy efficiency by preventing motor overloads.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S KT5 Motor Protection Circuit Breaker 1.0 to 1.6A is available now for immediate purchase, ideal for industrial and commercial applications.
