Motor Protection Circuit Breaker 1.6 - 2.5A | Frame Size C | Spring Clamp Terminals | by Allen-Bradley
Motor Protection Circuit Breaker 1.6 - 2.5A | Frame Size C | Spring Clamp Terminals | by Allen-Bradley
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

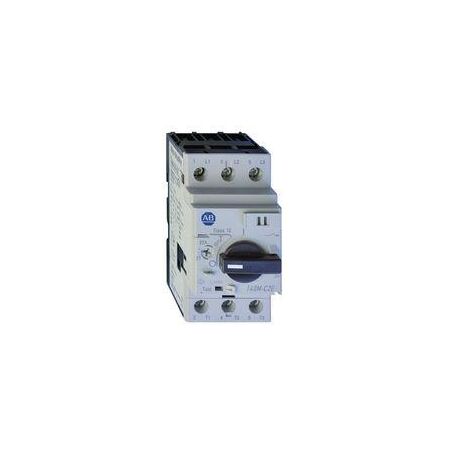

Product Name/Title: Allen-Bradley 140MRC2EB25 Motor Protection Circuit Breaker
Brand: Allen-Bradley
SKU: 140MRC2EB25
Alternatively Known As: Motor Protection Circuit Breaker, Motor Circuit Breaker, Thermal Overload Breaker
Technical Specifications
- Current Rating: 1.6 - 2.5A
- Frame Size: C
- Terminal Type: Spring Clamp
- Breaking Capacity: Standard
- Magnetic Trip: Fixed at 13x
- No bus bar mount
- No knob adaptor modification
- Designed for thermal overload protection
- Dimensions (H x L x W): 85mm x 75mm x 45mm
- Weight: 1.5 kg
Key Features
- Motor protection circuit breaker with 1.6 - 2.5A current rating
- Standard breaking capacity
- Frame size C with spring clamp terminals
- No bus bar mount required
- Standard magnetic trip fixed at 13x
- No knob adaptor modification
- Designed for thermal overload protection
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper motor protection.
Applications
- Motor protection in industrial electrical systems
- Overcurrent and thermal overload protection for motors
- Use in motor control centers and electrical panels
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Protects motors from damage, reducing waste and extending equipment life
- Helps prevent electrical faults that could lead to energy loss or hazards
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 140MRC2EB25 Motor Protection Circuit Breaker is discontinued by the manufacturer but available for immediate purchase through Radwell with a 2-year warranty. Ideal for motor protection applications in industrial settings.
