Motor Protection Circuit Breaker 10-16A | Thermomagnetic | 100kA Breaking Capacity by NHP
Motor protection circuit breaker with thermomagnetic switch-off and adjustable overload protection from 10 to 16A—ideal for industrial and commercial applications. Built for high breaking capacity of 100kA at 400V AC, ensuring reliable motor protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

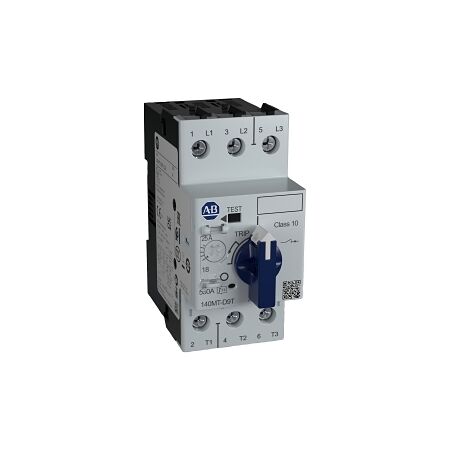

Product Name/Title: Allen-Bradley 140MT Motor Protection Circuit Breaker 10 to 16A
Brand: NHP
SKU: 140MTD9TC16
Alternatively Known As: Motor Protection Circuit Breaker, 140MTD9TC16
Technical Specifications
- Rated Permanent Current: 16 A
- Switch Off Technique: Thermomagnetic
- Long Time Overload Protection Adjustment Range: 10-16 A
- Max Rated Operation Voltage: 690 V
- Rated Short Circuit Breaking Capacity: 100 kA at 400 V AC
- Rated Operation Power at AC 3 400 V: 7.5 kW
- Type of Control Element: Turn handle
- Type of Electrical Connection of Main Circuit: Screw connection
- Number of Poles: 3
- Degree of Protection: IP2X
- Max Tightening Torque: 2.5 Nm
- Dimensions (H x L x W): 96.3mm x 93.7mm x 45mm
- Weight: 0.41 kg
Key Features
- Thermomagnetic switch-off technique for reliable protection.
- Adjustable long-time overload protection from 10 to 16 A.
- High breaking capacity of 100 kA at 400 V AC.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection in manufacturing and processing plants
- Commercial: Equipment protection in commercial buildings
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Enhances energy efficiency by protecting motors from overloads and faults.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140MT Motor Protection Circuit Breaker 10 to 16A is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable motor protection.
Non-Returnable & Non-Cancellable
