Motor Protection Circuit Breaker 10-16A | Thermomagnetic | IP2X Safety | Frame A by NHP
Motor protection circuit breaker with thermomagnetic switch-off and adjustable overload protection from 10 to 16A—ideal for industrial and commercial applications. Built for safety with IP2X protection and reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

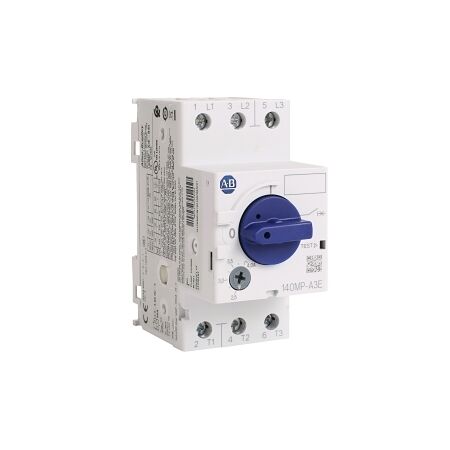

Product Name/Title: Allen-Bradley 140MP Motor Protection Circuit Breaker Frame A 10 to 16A
Brand: NHP
SKU: 140MPA3EC16
Alternatively Known As: Motor Protection Circuit Breaker, 140MP Circuit Breaker
Technical Specifications
- Rated Permanent Current (Iu): 16 A
- Switch Off Technique: Thermomagnetic
- Long Time Overload Protection Adjustment Range: 10-16 A
- Max Rated Operation Voltage (Ue): 690 V
- Rated Short Circuit Breaking Capacity (LCU at 400 V AC): 15 kA
- Rated Operation Power at AC 3 400 V: 7.5 kW
- Type of Control Element: Turn handle
- Type of Electrical Connection of Main Circuit: Screw connection
- Number of Poles: 3
- Max Tightening Torque: 2.5 Nm
- Dimensions (H x L x W): 90mm x 85.5mm x 45mm
- Weight: 0.28 kg
Key Features
- Thermomagnetic switch-off technique for reliable protection.
- Adjustable long-time overload protection from 10 to 16 A.
- IP2X degree of protection ensuring safety against accidental contact.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection in various machinery and equipment
- Commercial: Electrical distribution systems requiring overload protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Enhances energy efficiency by preventing motor overloads and failures.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140MP Motor Protection Circuit Breaker Frame A 10 to 16A is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable motor protection.
Non-Returnable & Non-Cancellable
