Motor Protection Circuit Breaker 16-20A | Thermomagnetic | IP2X by NHP
Motor protection circuit breaker with thermomagnetic switch-off and adjustable overload protection from 16 to 20A—ideal for industrial and commercial applications. Built for safety with IP2X protection and reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

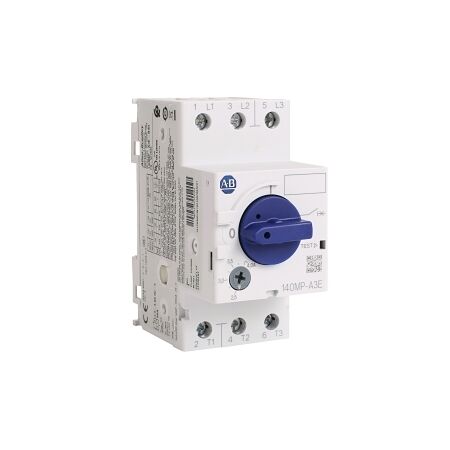

Product Name/Title: Allen-Bradley 140MP Motor Protection Circuit Breaker Frame A 16 to 20A
Brand: NHP
SKU: 140MPA3EC20
Alternatively Known As: Motor Protection Circuit Breaker, 140MP Circuit Breaker
Technical Specifications
- Rated Permanent Current: 20 A
- Switch Off Technique: Thermomagnetic
- Long Time Overload Protection Adjustment Range: 16-20 A
- Max Rated Operation Voltage: 690 V
- Rated Short Circuit Breaking Capacity: 15 kA at 400 V AC
- Rated Operation Power at AC 3 400 V: 10 kW
- Type of Control Element: Turn handle
- Type of Electrical Connection: Screw connection
- Number of Poles: 3
- Max Tightening Torque: 2.5 Nm
- Dimensions (H x L x W): 96.8mm x 85.5mm x 45mm
- Weight: 0.33 kg
Key Features
- Thermomagnetic switch-off technique for reliable protection.
- Adjustable long-time overload protection from 16 to 20 A.
- IP2X degree of protection ensuring safety against accidental contact.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection in various machinery and equipment
- Commercial: Electrical distribution systems requiring overload protection
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed to enhance safety and reliability in electrical systems.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Allen-Bradley 140MP Motor Protection Circuit Breaker Frame A 16 to 20A is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable motor protection.
Non-Returnable & Non-Cancellable
