Motor Protection Circuit Breaker 16-20A | Thermomagnetic | IP2X by NHP
Motor protection circuit breaker with thermomagnetic switch-off and adjustable overload protection from 16 to 20A—ideal for industrial and commercial applications. Built for safety with IP2X protection and energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

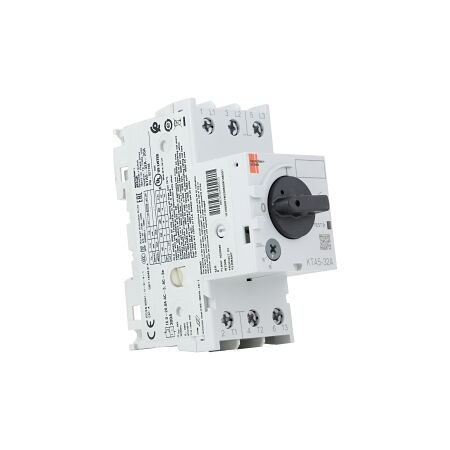

Product Name/Title: S+S KT5 Motor Protection Circuit Breaker 16 to 20A
Brand: NHP
SKU: KTA532AC20
Alternatively Known As: Motor Protection Circuit Breaker, KT5 Circuit Breaker
Technical Specifications
- Rated Permanent Current: 20 A
- Max Rated Operation Voltage: 690 V
- Rated Short Circuit Breaking Capacity: 15 kA at 400 V AC
- Rated Operation Power at AC 3: 10 kW
- Type of Control Element: Turn handle
- Type of Electrical Connection: Screw connection
- Number of Poles: 3
- Max Tightening Torque: 2.5 Nm
- Dimensions (H x L x W): 96.8mm x 85.5mm x 45mm
- Weight: 0.33 kg
Key Features
- Thermomagnetic switch-off technique for reliable protection.
- Adjustable long-time overload protection from 16 to 20 A.
- IP2X degree of protection ensuring safety against accidental contact.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection in manufacturing and processing plants
- Commercial: Equipment protection in commercial buildings
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Enhances energy efficiency by protecting motors from overloads and faults.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The S+S KT5 Motor Protection Circuit Breaker 16 to 20A is available now for immediate purchase. Ideal for industrial and commercial applications.
