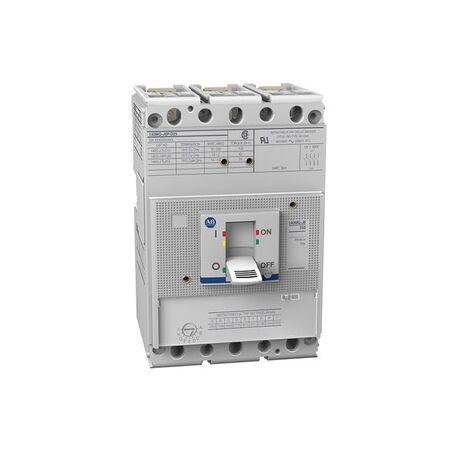

Motor Protection Circuit Breaker 200A | MCP Protection Type | J Frame Design | 35-65 kA Interrupting Capacity | by Allen-Bradley
The Motor Protection Circuit Breaker 200A is designed for reliable industrial motor protection, featuring MCP protection type and a robust J frame design. With a 35-65 kA interrupting capacity at 480 V and thermal/magnetic trip settings, it's perfect for electrical control panels and automation systems, ensuring safety and compliance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Model: 140MGJ8PD20
- Protection Type: MCP
- Frame: J
- Interrupting Capacity: 35-65 kA at 480 V
- Trip Type: Thermal/magnetic with adjustable thermal and fixed magnetic
- Poles: 3
- Rated Current: 200 A
- Bus Bar Mounting: No
- Control Voltage: 24 V AC/DC
- Dimensions (H x L x W): 110mm x 75mm x 90mm
- Weight: 3.5 kg
Key Features
- Motor protection circuit breaker with MCP protection type
- J frame design
- 35-65 kA interrupting capacity at 480 V
- Thermal/magnetic trip with adjustable thermal and fixed magnetic settings
- 3 poles
- Rated current of 200 amps
- No bus bar mounting required
- Operates at 24 V AC/DC control voltage
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper operation.
Applications
- Industrial motor protection
- Electrical control panels
- Manufacturing and automation systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Protects motors from damage, reducing waste and extending equipment life
- Helps prevent electrical faults that could lead to energy loss or hazards
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 140MGJ8PD20 Motor Protection Circuit Breaker is available for immediate purchase, ideal for industrial motor protection and control applications.
