Motor Protection Circuit Breaker 25-32A | Thermomagnetic | IP2X Safety by NHP
Motor protection circuit breaker with thermomagnetic switch-off and adjustable overload protection from 25 to 32A—ideal for industrial and commercial applications. Built for safety with IP2X protection and reliable performance.
Sign in
Please login to continue to your account.

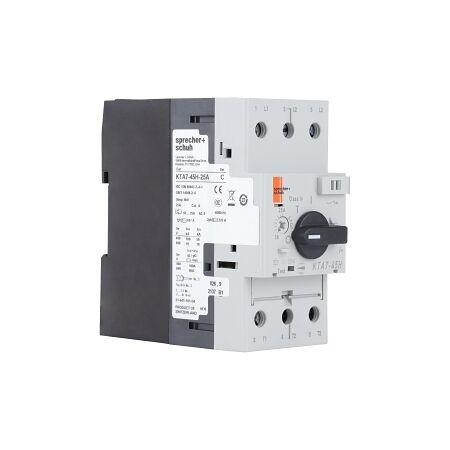

Product Name/Title: S+S KT7 Motor Protection Circuit Breaker 25 to 32A
Brand: NHP
SKU: KTA745H32A
Alternatively Known As: Motor Protection Circuit Breaker, KT7 Circuit Breaker, NHP Motor Breaker
- Rated Permanent Current: 32 A
- Switch Off Technique: Thermomagnetic
- Long Time Overload Protection Adjustment Range: 25-32 A
- Max Rated Operation Voltage: 690 V
- Rated Short Circuit Breaking Capacity: 65 kA at 400 V AC
- Rated Operation Power at AC 3: 15 kW
- Type of Control Element: Turn handle
- Type of Electrical Connection: Screw connection
- Number of Poles: 3
- Degree of Protection: IP2X
- Max Tightening Torque: 3.5 Nm
- Dimensions (H x L x W): 111mm x 115mm x 54mm
- Weight: 0.78 kg
- Thermomagnetic switch-off technique for reliable protection.
- Adjustable long-time overload protection from 25 to 32 A.
- IP2X degree of protection ensuring safety against accidental contact.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Motor protection in various machinery and equipment
- Commercial: Suitable for use in commercial electrical installations
- Complies with AS/NZS 3000 for electrical installation safety.
- Enhances energy efficiency by protecting motors from overloads and faults.
1 year warranty against manufacturing defects.
The S+S KT7 Motor Protection Circuit Breaker 25 to 32A is available now for immediate purchase. Ideal for industrial and commercial applications.
