Motor Protection Circuit Breaker 30-36A | 690V | 50kA Breaking Capacity | IP2X by NHP
Motor protection circuit breaker with 30-36A adjustable overload protection and 690V operation—ideal for industrial and commercial applications. Built for reliable motor protection, with 50kA breaking capacity and IP2X protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

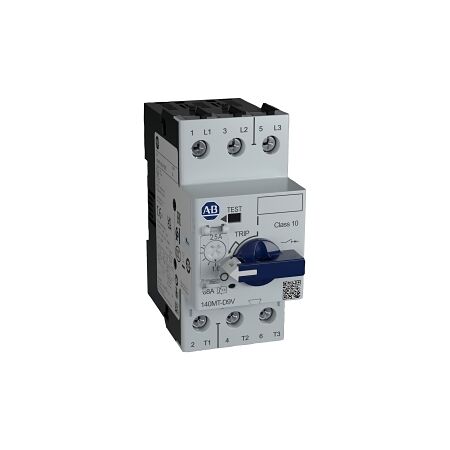

Product Name/Title: Allen-Bradley 140MT Motor Protection Circuit Breaker 30 to 36A
Brand: NHP
SKU: 140MTD9VC36
Alternatively Known As: Motor Protection Circuit Breaker, 140MT Circuit Breaker
Technical Specifications
- Rated Permanent Current (Iu): 36 A
- Max Rated Operation Voltage (Ue): 690 V
- Rated Operation Power at AC 3, 400 V: 18.5 kW
- Number of Poles: 3
- Degree of Protection: IP2X
- Max Tightening Torque: 2.5 Nm
- Type of Control Element: Turn handle
- Type of Electrical Connection: Screw connection
- Dimensions (H x L x W): 96.3mm x 93.7mm x 45mm
- Weight: 0.41 kg
Key Features
- Thermomagnetic switch-off technique for reliable protection.
- Adjustable long-time overload protection from 30 to 36 A.
- Rated short-circuit breaking capacity of 50 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection in various machinery and equipment
- Commercial: Electrical distribution systems requiring overload protection
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed to enhance safety and reliability in electrical systems.
Warranty Information
Standard warranty applies.
Available Now
The Allen-Bradley 140MT Motor Protection Circuit Breaker 30 to 36A is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable motor protection.
