Motor Protection Circuit Breaker 30-36A | Thermomagnetic | IP2X Safety by NHP
Motor protection circuit breaker with thermomagnetic switch-off and adjustable overload protection from 30 to 36A—ideal for industrial and commercial applications. Built for safety with IP2X protection and reliable performance.
Sign in
Please login to continue to your account.

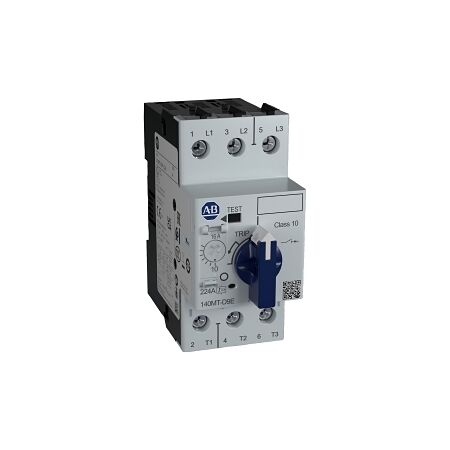

Product Name/Title: Allen-Bradley 140MT Motor Protection Circuit Breaker 30 to 36A
Brand: NHP
SKU: 140MTD9EC36
Alternatively Known As: Motor Protection Circuit Breaker, 140MT Circuit Breaker
- Rated Permanent Current: 36 A
- Switch Off Technique: Thermomagnetic
- Long Time Overload Protection Adjustment Range: 30-36 A
- Max Rated Operation Voltage: 690 V
- Rated Short Circuit Breaking Capacity: 50 kA at 400 V AC
- Rated Operation Power at AC 3 400 V: 18.5 kW
- Type of Control Element: Turn handle
- Type of Electrical Connection: Screw connection
- Number of Poles: 3
- Max Tightening Torque: 2.5 Nm
- Dimensions (H x L x W): 96.3mm x 93.7mm x 45mm
- Weight: 0.41 kg
- Thermomagnetic switch-off technique for reliable protection.
- Adjustable long-time overload protection from 30 to 36 A.
- IP2X degree of protection ensuring safety against accidental contact.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Motor protection in manufacturing and processing plants
- Commercial: Equipment protection in commercial facilities
- Complies with AS/NZS 3000 for electrical installation safety.
- Enhances energy efficiency by protecting motors from overloads and faults.
1 year warranty against manufacturing defects.
The Allen-Bradley 140MT Motor Protection Circuit Breaker 30 to 36A is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable motor protection.
