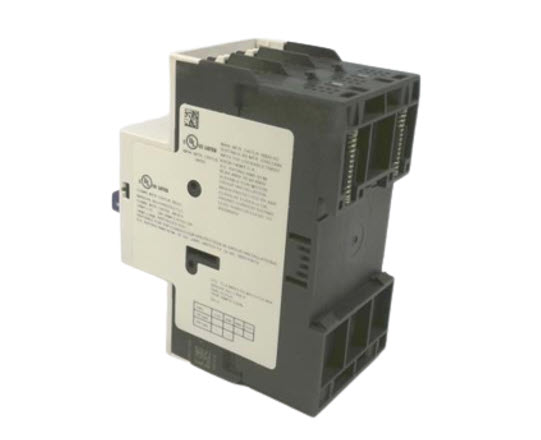

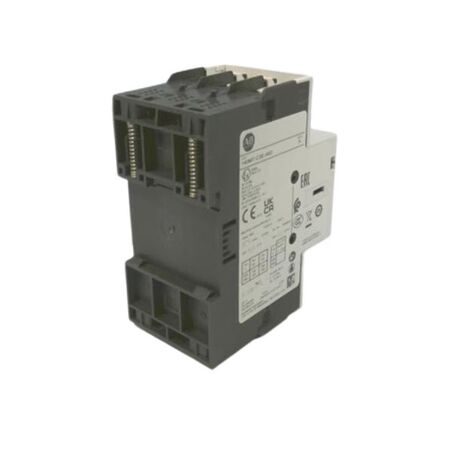

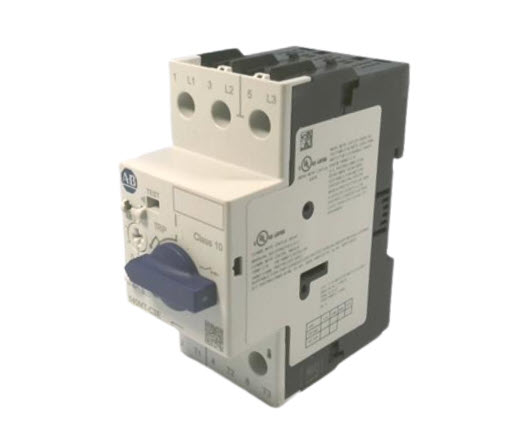

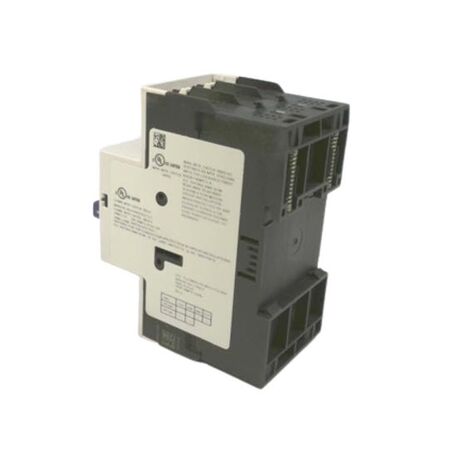

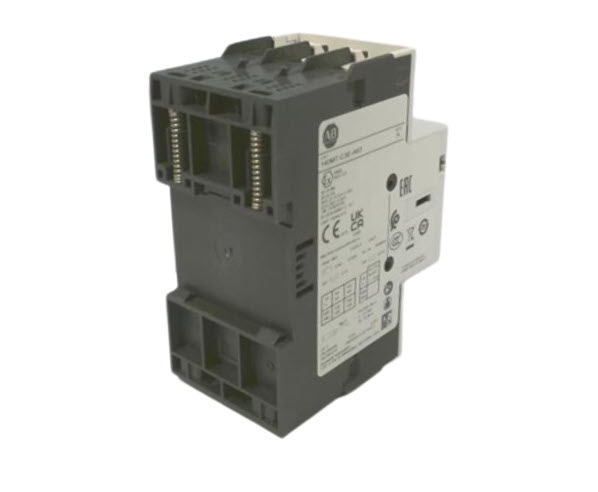

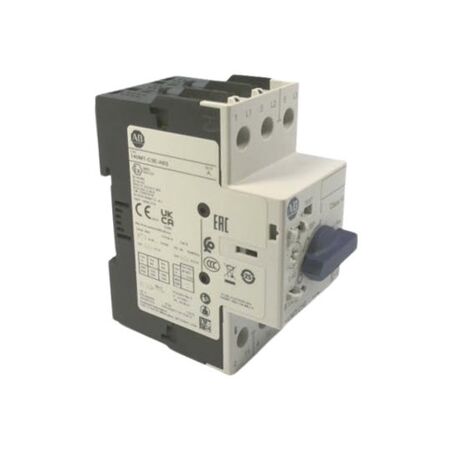

Product Name/Title: Allen-Bradley 140MTC3EA63 Motor Protection Circuit Breaker
Brand: Allen-Bradley
SKU: 140MTC3EA63
Alternatively Known As: Motor Protection Circuit Breaker, Motor Circuit Breaker, Allen-Bradley Motor Breaker
Technical Specifications
- Current Rating: 0.4 - 0.63A
- Trip Class: 10
- Breaking Capacity: Standard
- Magnetic Trip: Fixed at 14 times rated current
- Frame Type: C frame
- Dimensions (H x L x W): 85mm x 75mm x 45mm
- Weight: 1.5 kg
Key Features
- C frame design for motor protection
- Trip class 10 for motor starting and protection
- Standard breaking capacity
- Fixed standard magnetic trip at 14 times the rated current
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper motor protection.
Applications
- Motor protection in industrial and commercial electrical systems
- Overcurrent and short circuit protection for motors
- Use in motor control centers and electrical panels
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Protects motors from damage, reducing waste and extending equipment life
- Helps prevent electrical faults that could lead to energy loss or hazards
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 140MTC3EA63 Motor Protection Circuit Breaker is available now for immediate purchase. Ideal for industrial motor protection and control applications.
