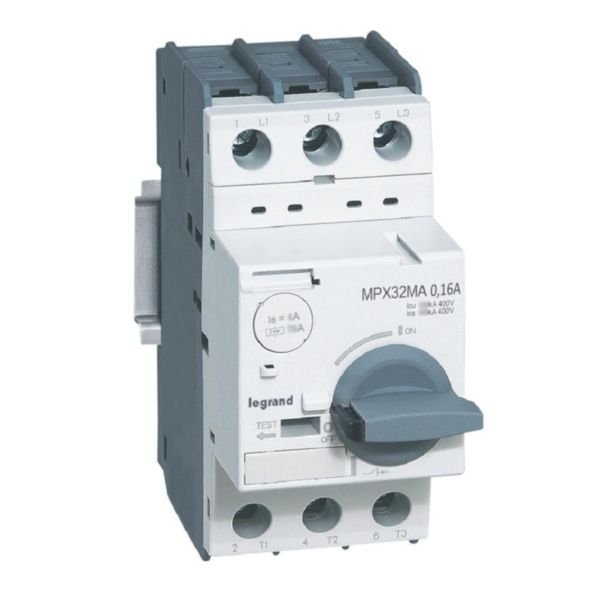

Motor Protection Circuit Breaker MPX3 | 0.16A | 100kA Short-Circuit Capacity | IP20 Rated | @Each of 1 | by Legrand
The Motor Protection Circuit Breaker MPX3 is designed for reliable protection of 3-phase motors, featuring a rated permanent current of 0.16A and a short-circuit breaking capacity of 100kA. Ideal for industrial and tertiary applications, this breaker ensures safety and compliance with electrical standards, making it a must-have for motor control in switchboards and power cabinets.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Motor Protection Circuit Breaker MPX3 | 0.16A | 100kA Short-Circuit Capacity | IP20 Rated | @Each of 1 | by Legrand
Brand: Legrand
SKU: 417340
Alternatively Known As: Motor Protection Circuit Breaker, MPX3 Motor Breaker, Legrand MPX3 Circuit Breaker, 3-Phase Motor Protector
Technical Specifications
- Rated operating voltage: 220-690 V
- Rated permanent current: 0.16 A
- Rated operation power at AC-3, 400 V: 0.02 kW
- Rated short-circuit breaking capacity (Icu) at 400 V AC: 100 kA
- Switch off technique: Magnetic
- Number of poles: 3
- Type of electrical connection: Frame clamp
- Type of control element: Turn button
- Integrated auxiliary switch: Yes
- Integrated under voltage release: Yes
- Degree of protection: IP20
- Screw terminals capacity: 1mm² to 10mm² / 2 x 1mm² to 6mm²
- Dimensions (H x L x W): 94mm x 100mm x 45mm
- Weight: 0.3 kg
Key Features
- Rated operating voltage: 220-690 V
- Rated permanent current: 0.16 A
- Rated short-circuit breaking capacity (Icu) at 400 V AC: 100 kA
- Magnetic switch off technique
- Integrated auxiliary switch and under voltage release
- Screw terminals capacity: 1mm² to 10mm² / 2 x 1mm² to 6mm²
- Compatible with MPX3 auxiliaries
- Compact size for optimized cabinet space
- IP20 degree of protection
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper motor protection.
Applications
- Protection of 3-phase motors in tertiary and industrial installations
- Suitable for motors rated 0.02 kW / 415 V
- Use in switchboards and power cabinets for motor control and protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with substance-restriction compliance and environmentally conscious manufacturing process
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand warranty terms for details.
Available Now
The Legrand Motor Protection Circuit Breaker MPX3 32MA 0.16A 100KA is available for immediate purchase, ideal for industrial and tertiary motor protection applications.
