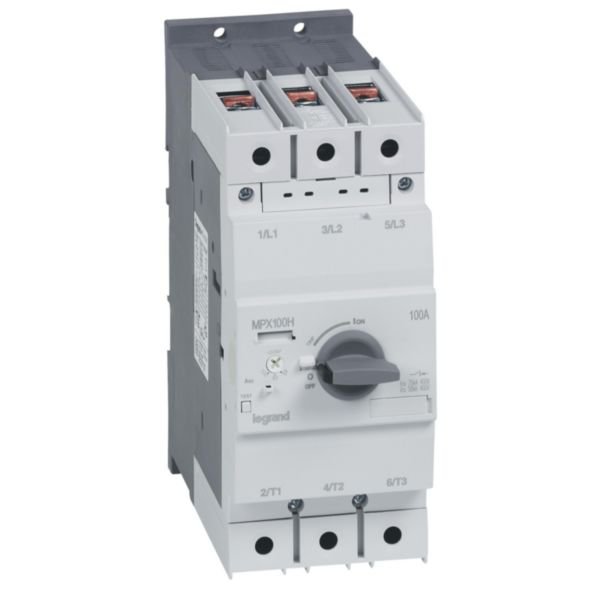

Motor Protection Circuit Breaker MPX3 100H | 80-100A Adjustable | 75kA Short-Circuit Capacity | IP20 Rated | @EA of 1 | by Legrand
The Motor Protection Circuit Breaker MPX3 100H is designed for reliable protection of 3-phase motors, featuring an adjustable overload release current from 80-100A and a robust 75kA short-circuit breaking capacity. Ideal for industrial and tertiary electrical installations, this breaker ensures optimal performance and safety in switchboards and power cabinets.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Motor Protection Circuit Breaker MPX3 100H | 80-100A Adjustable | 75kA Short-Circuit Capacity | IP20 Rated | @EA of 1 | by Legrand
Brand: Legrand
SKU: 417379
Alternatively Known As: Motor Protection Breaker, Motor Circuit Breaker, MPX3 Motor Breaker, Thermal Magnetic Motor Protector
Technical Specifications
- Rated operating voltage: 220-690 V
- Rated permanent current (Iu): 100 A
- Overload release current setting: 80-100 A
- Undelayed short-circuit release adjustment range: 1300 A
- Rated short-circuit breaking capacity (Icu) at 400 V AC: 75 kA
- Rated operation power at AC-3, 230 V: 30 kW
- Rated operation power at AC-3, 400 V: 45 kW
- Number of poles: 3
- Degree of protection (IP): IP20
- Type of electrical connection: Frame clamp
- Control element: Turn button
- Device construction: Built-in fixed device
- Includes integrated auxiliary switch and under voltage release
- Dimensions (H x L x W): 165mm x 171mm x 70mm
- Weight: 1.5 kg
Key Features
- Thermomagnetic switch off technique for reliable motor protection
- Overload release current setting adjustable from 80-100 A
- Short-circuit release adjustable range 1300-1300 A
- Rated short-circuit breaking capacity of 75 kA at 400 V AC
- Integrated auxiliary switch and under voltage release
- Compatible with MPX3 auxiliaries
- Cage terminals capacity from 2mm² to 70mm²
- Compact size for optimized cabinet space
- Easy operation with rotary handle
Professional Installation Requirements
- Installation must be performed by a qualified electrician following Legrand installation instructions and local electrical codes.
Applications
- Protection of 3-phase motors up to 45kW / 415V
- Tertiary and industrial electrical installations
- Control and signalling in switchboards and power cabinets
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Designed with substance-restriction compliance and environmentally conscious manufacturing processes
- Helps prevent motor damage and energy waste by providing reliable overload and short-circuit protection
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand's official warranty policy for details.
Available Now
The Legrand Motor Protection Circuit Breaker MPX3 100H 80-100A 50KA is available for immediate purchase, ideal for industrial and tertiary motor protection applications.
