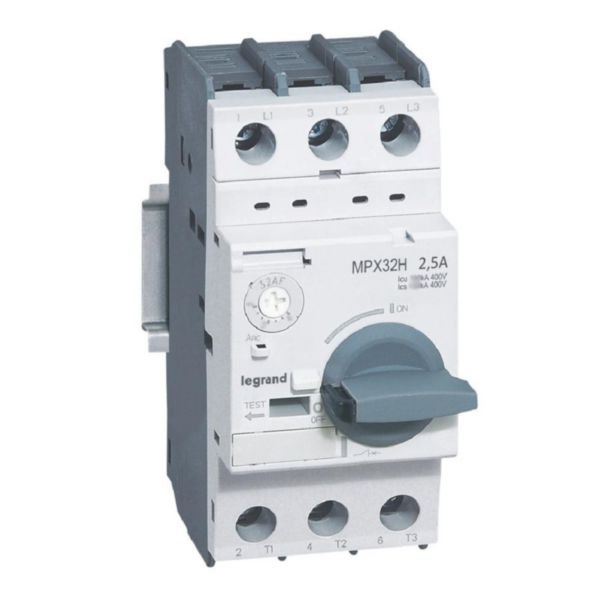

Motor Protection Circuit Breaker MPX3 32H | 1.6-2.5A Adjustable | 100kA Short-Circuit Capacity | IP20 Rated | @EA of 1 | by Legrand
The Motor Protection Circuit Breaker MPX3 32H is designed for reliable protection of 3-phase motors, featuring an adjustable overload release current from 1.6 to 2.5A and a robust 100kA short-circuit breaking capacity. Ideal for industrial and tertiary applications, this breaker ensures safety and compliance with AS/NZS 3000 standards, making it a perfect choice for switchboards and power cabinets.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Motor Protection Circuit Breaker MPX3 32H | 1.6-2.5A Adjustable | 100kA Short-Circuit Capacity | IP20 Rated | @EA of 1 | by Legrand
Brand: Legrand
SKU: 417326
Alternatively Known As: Motor Protection Breaker, MP Circuit Breaker, MPX3 Motor Breaker, Thermal Magnetic Motor Protector
Technical Specifications
- Overload release current setting: 1.6-2.5 A
- Short-circuit release adjustment: 32.5 A
- Thermal overload protection included
- Rated operating voltage: 220-690 V
- Rated permanent current: 2.5 A
- Rated operation power at AC-3, 230 V: 0.37 kW
- Rated operation power at AC-3, 400 V: 0.75 kW
- Type of electrical connection: Frame clamp
- Control element: Turn button
- Device construction: Built-in fixed built-in technique
- Integrated auxiliary switch and under voltage release
- Number of poles: 3
- Rated short-circuit breaking capacity Icu at 400 V AC: 100 kA
- Degree of protection: IP20
- Dimensions (H x L x W): 94mm x 100mm x 45mm
- Weight: 0.3 kg
Key Features
- Thermomagnetic switch-off technique for reliable motor protection
- Overload release current adjustable from 1.6 to 2.5 A
- Short-circuit release fixed at 32.5 A
- Rated short-circuit breaking capacity of 100 kA at 400 V AC
- Integrated auxiliary switch and under voltage release
- Screw terminals capacity from 1mm² to 10mm²
- Compact size for optimized cabinet space
- Compatible with MPX3 auxiliaries
- IP20 degree of protection
Professional Installation Requirements
- Installation should be performed by a qualified electrician following the product instructions and local electrical codes.
Applications
- Protection of 3-phase motors up to 0.75 kW at 415V
- Tertiary and industrial electrical installations
- Control and signalling in switchboards and power cabinets
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with substance-restriction compliance and environmentally conscious manufacturing processes
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand's official warranty policy for details.
Available Now
The Legrand Motor Protection Circuit Breaker MPX3 32H 1.6-2.5A 100KA is available for immediate purchase, ideal for industrial and tertiary motor protection applications.
