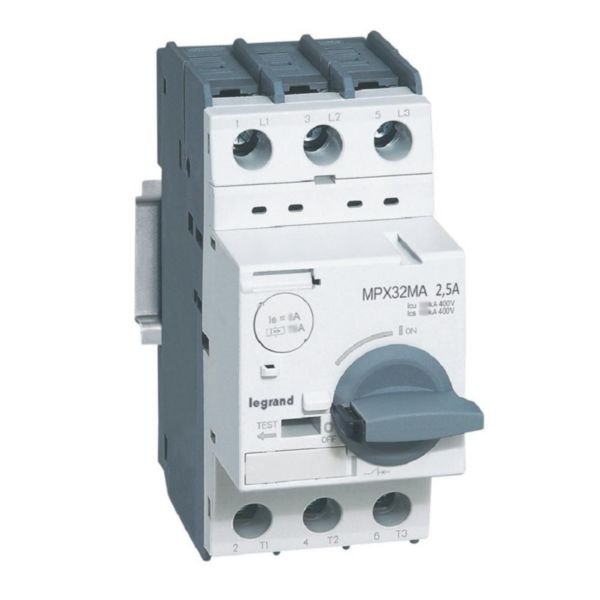

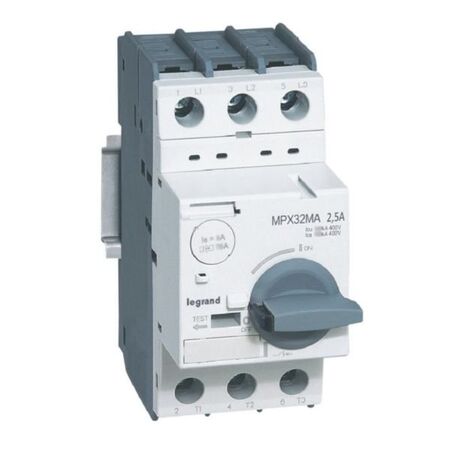

Motor Protection Circuit Breaker MPX3 32MA 2.5A | 100kA Short-Circuit Capacity | IP20 Rated | @EA of 1 | by Legrand
The Motor Protection Circuit Breaker MPX3 32MA 2.5A is designed for reliable protection of 3-phase motors up to 0.75kW / 415V. With a rated short-circuit breaking capacity of 100kA and an IP20 rating, it ensures safety and efficiency in industrial and tertiary applications. Featuring a built-in auxiliary switch and a rotary handle for easy operation, this breaker is perfect for switchboards and power cabinets.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Motor Protection Circuit Breaker MPX3 32MA 2.5A | 100kA Short-Circuit Capacity | IP20 Rated | @EA of 1 | by Legrand
Brand: Legrand
SKU: 417346
Alternatively Known As: Motor Protection Breaker, MP Circuit Breaker, MPX3 Motor Breaker, Motor Overload Protector
Technical Specifications
- Rated operating voltage: 220-690 V
- Rated permanent current (Iu): 2.5 A
- Rated short-circuit breaking capacity (Icu) at 400 V AC: 100 kA
- Rated operation power at AC-3, 230 V: 0.37 kW
- Rated operation power at AC-3, 400 V: 0.75 kW
- Number of poles: 3
- Type of electrical connection: Frame clamp
- Type of control element: Turn button
- With integrated auxiliary switch: Yes
- With integrated under voltage release: Yes
- Adjustment range undelayed short-circuit release: 32.5 A
- Switch off technique: Magnetic
- Degree of protection (IP): IP20
- Dimensions (H x L x W): 94mm x 100mm x 45mm
- Weight: 0.3 kg
Key Features
- Protection for 3-phase motors 0.75kW / 415V
- Rated short-circuit breaking capacity (Icu) of 100kA at 415V
- Screw terminals capacity from 1mm² to 10mm²
- Compatible with MPX3 auxiliaries
- Rotary handle for easy operation
- Built-in auxiliary switch and under voltage release
- Magnetic switch off technique
- Compact size for optimized cabinet space
- IP20 degree of protection
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper integration into motor control systems.
Applications
- Protection of 3-phase motors up to 0.75kW / 415V in tertiary and industrial installations
- Use in switchboards and power cabinets for motor control and protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with substance-restriction compliance and environmentally conscious manufacturing process
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand warranty terms for details.
Available Now
The Legrand Motor Protection Circuit Breaker MPX3 32MA 2.5A 100KA is available for immediate purchase, ideal for industrial and tertiary motor protection applications.
