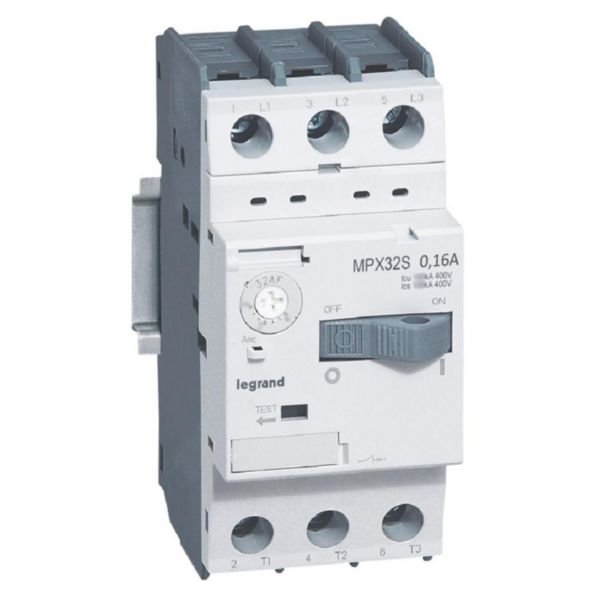

Motor Protection Circuit Breaker MPX3 32S | 0.1-0.16A | 100kA Short-Circuit Capacity | IP20 Rated | @Each of 1 | by Legrand
The Motor Protection Circuit Breaker MPX3 32S is designed for reliable protection of 3-phase motors, featuring an adjustable overload release current from 0.1 to 0.16A and a robust 100kA short-circuit breaking capacity. Ideal for industrial and tertiary applications, this breaker ensures safety and compliance with electrical standards, making it a must-have for switchboards and power cabinets.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Motor Protection Circuit Breaker MPX3 32S | 0.1-0.16A | 100kA Short-Circuit Capacity | IP20 Rated | @Each of 1 | by Legrand
Brand: Legrand
SKU: 417300
Alternatively Known As: Motor Protection Breaker, MP Circuit Breaker, MPX3 Motor Breaker, Thermal Magnetic Motor Protector
Technical Specifications
- Rated operating voltage: 220-690 V
- Rated permanent current (Iu): 0.16 A
- Rated operation power at AC-3, 400 V: 0.02 kW
- Number of poles: 3
- Overload release current setting: 0.1-0.16 A
- Adjustment range undelayed short-circuit release: 2.1 A
- Type of electrical connection: Frame clamp
- Type of control element: Rocker lever
- Integrated auxiliary switch: Yes
- Integrated under voltage release: Yes
- Rated short-circuit breaking capacity (Icu) at 400 V AC: 100 kA
- Degree of protection: IP20
- Dimensions (H x L x W): 94mm x 75mm x 45mm
- Weight: 0.2 kg
Key Features
- Thermomagnetic switch off technique
- Overload release current setting adjustable from 0.1 to 0.16 A
- Undelayed short-circuit release adjustment at 2.1 A
- Rated short-circuit breaking capacity of 100 kA at 400 V AC
- Integrated auxiliary switch and under voltage release
- Screw terminals capacity from 1 mm² to 10 mm² and 2 x 1 mm² to 6 mm²
- Compatible with MPX3 auxiliaries
- Easy operation with rocker lever control
- IP20 degree of protection
- Compact size for optimized cabinet space
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper motor protection.
Applications
- Protection of 3-phase motors in tertiary and industrial installations
- Suitable for motors rated 0.02 kW / 415 V
- Use in switchboards and power cabinets for motor control and protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with substance-restriction compliance and environmentally conscious manufacturing processes
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand's official warranty policy for details.
Available Now
The Legrand Motor Protection Circuit Breaker MPX3 32S 0.1-0.16A 100KA is available for immediate purchase, ideal for industrial and tertiary motor protection applications.
