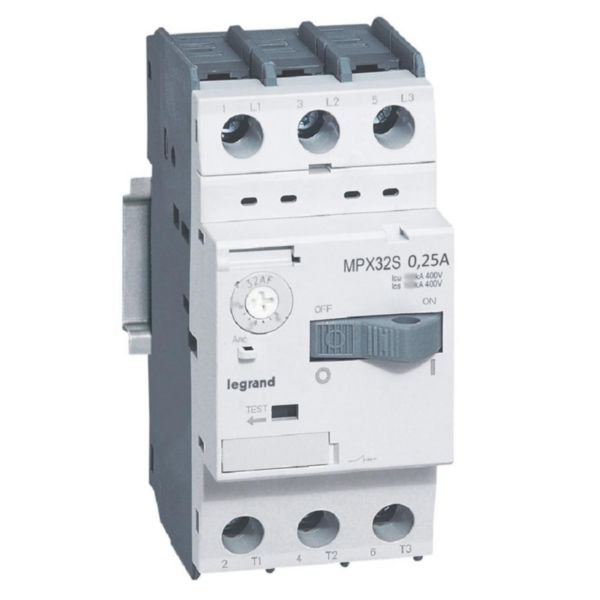

Motor Protection Circuit Breaker MPX3 32S | 0.16-0.25A Adjustable | 100kA Short-Circuit Capacity | IP20 Rated | @EA of 1 | by Legrand
The Motor Protection Circuit Breaker MPX3 32S is designed for reliable protection of 3-phase motors, featuring an adjustable overload release current setting from 0.16 to 0.25A and a robust 100kA short-circuit breaking capacity. Ideal for industrial and tertiary applications, this breaker ensures safety and compliance with electrical standards, making it a perfect choice for switchboards and power cabinets.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Motor Protection Circuit Breaker MPX3 32S | 0.16-0.25A Adjustable | 100kA Short-Circuit Capacity | IP20 Rated | @EA of 1 | by Legrand
Brand: Legrand
SKU: 417301
Alternatively Known As: Motor Protection Circuit Breaker, MPX3 Motor Breaker, Legrand MPX3 Circuit Breaker, Motor Overload Protector
Technical Specifications
- Overload release current setting: 0.16-0.25 A
- Undelayed short-circuit release adjustment range: 3.3 A
- Thermal overload protection included
- Rated operating voltage: 220-690 V
- Rated permanent current: 0.25 A
- Rated operation power at AC-3, 230 V: 0.03 kW
- Rated operation power at AC-3, 400 V: 0.06 kW
- Type of electrical connection: Frame clamp
- Number of poles: 3
- Rated short-circuit breaking capacity Icu at 400 V, AC: 100 kA
- Degree of protection: IP20
- Control element: Rocker lever
- Built-in device fixed built-in technique
- Integrated auxiliary switch and under voltage release
- Dimensions (H x L x W): 94mm x 75mm x 45mm
- Weight: 0.3 kg
Key Features
- Thermomagnetic switch-off technique for reliable motor protection
- Overload release current setting adjustable from 0.16 to 0.25 A
- Short-circuit breaking capacity of 100 kA at 400 V AC
- Compatible with MPX3 auxiliaries
- Integrated auxiliary switch and under voltage release
- Screw terminals capacity from 1mm² to 10mm²
- Easy operation with rocker lever control
- Compact size for optimized cabinet space
- IP20 degree of protection
Professional Installation Requirements
- Installation should be performed by a qualified electrician following all relevant electrical standards and safety regulations.
Applications
- Protection of 3-phase motors in tertiary and industrial installations
- Suitable for motors rated 0.06 kW / 415 V
- Use in switchboards and power cabinets for motor control and protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with substance-restriction compliance for environmental safety
- Manufactured through an environmentally conscious process
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand warranty terms for details.
Available Now
The Legrand Motor Protection Circuit Breaker MPX3 32S 0.16-0.25A 100KA is available for immediate purchase, ideal for industrial and tertiary motor protection applications.
