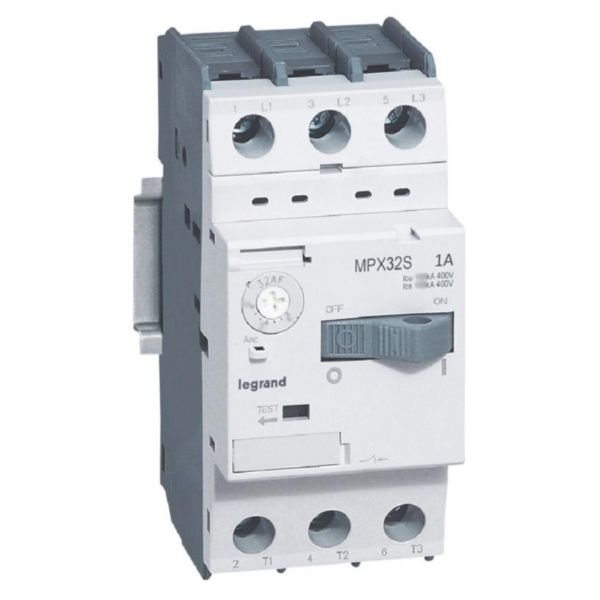

Motor Protection Circuit Breaker MPX3 32S | 0.63-1.0A Adjustable | 100kA Short-Circuit Capacity | @Each of 1 | by Legrand
The Motor Protection Circuit Breaker MPX3 32S is designed for reliable motor protection, featuring an adjustable overload release current from 0.63 to 1 A and a robust 100kA short-circuit breaking capacity. Ideal for industrial and tertiary electrical installations, this breaker ensures safety and compliance with AS/NZS 3000 standards, making it perfect for protecting 3-phase motors in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Motor Protection Circuit Breaker MPX3 32S | 0.63-1.0A Adjustable | 100kA Short-Circuit Capacity | @Each of 1 | by Legrand
Brand: Legrand
SKU: 417304
Alternatively Known As: Motor Protection Circuit Breaker, MPX3 Motor Breaker, Legrand MPX3 Circuit Breaker, Motor Overload Protector
Technical Specifications
- Overload release current setting: 0.63-1 A
- Adjustment range undelayed short-circuit release: 13-13 A
- Thermal overload protection included
- Rated operating voltage: 220-690 V
- Rated permanent current Iu: 1 A
- Rated operation power at AC-3, 230 V: 0.12 kW
- Rated operation power at AC-3, 400 V: 0.18 kW
- Type of electrical connection: Frame clamp
- Control element: Rocker lever
- Device construction: Built-in fixed built-in technique
- Integrated auxiliary switch and under voltage release
- Number of poles: 3
- Rated short-circuit breaking capacity Icu at 400 V, AC: 100 kA
- Degree of protection (IP): IP20
- Dimensions (H x L x W): 94mm x 75mm x 45mm
- Weight: 0.3 kg
Key Features
- Thermomagnetic switch-off technique for reliable motor protection
- Overload release current adjustable from 0.63 to 1 A
- Short-circuit release adjustable from 13 to 13 A
- Rated short-circuit breaking capacity of 100 kA at 400 V AC
- Integrated auxiliary switch and under voltage release
- Compatible with MPX3 auxiliaries
- Screw terminals capacity from 1mm² to 10mm² and 2 x 1mm² to 6mm²
- Compact size for optimized cabinet space
- Easy operation with rocker lever control
Professional Installation Requirements
- Installation should be performed by a qualified electrician following all relevant electrical standards and safety regulations.
Applications
- Protection of 3-phase motors up to 0.25kW / 415V
- Tertiary and industrial electrical installations
- Control and signalling in switchboards and power cabinets
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with substance-restriction compliance for reduced environmental impact
- Manufactured through an environmentally conscious process
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand's official warranty policy for details.
Available Now
The Legrand Motor Protection Circuit Breaker MPX3 32S 0.63-1.0A 100KA is available for immediate purchase, ideal for industrial and tertiary motor protection applications.
