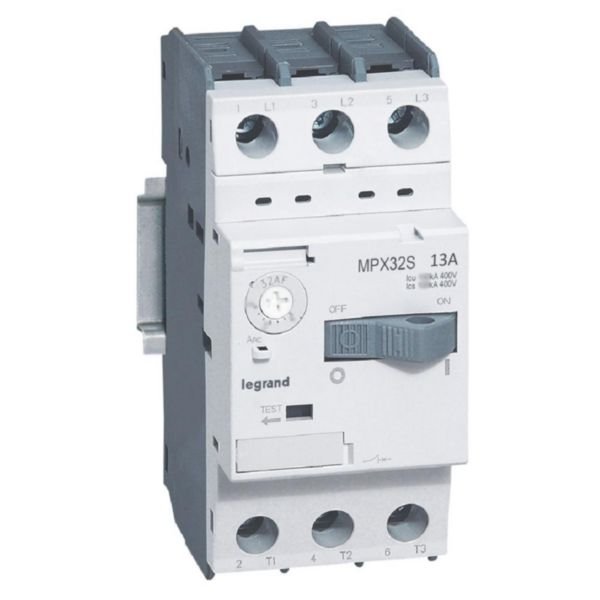

Motor Protection Circuit Breaker MPX3 32S | 9-13A Adjustable | 50kA Short-Circuit Capacity | IP20 Rated | @Each of 1 | by Legrand
The Motor Protection Circuit Breaker MPX3 32S is designed for reliable protection of 3-phase motors up to 5.5 kW. With an adjustable overload release current from 9 to 13 A and a robust 50 kA short-circuit breaking capacity, it ensures optimal safety in industrial and tertiary electrical installations. Featuring an easy-to-use rocker lever and IP20 protection, this breaker is perfect for switchboards and power cabinets.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Motor Protection Circuit Breaker MPX3 32S | 9-13A Adjustable | 50kA Short-Circuit Capacity | IP20 Rated | @Each of 1 | by Legrand
Brand: Legrand
SKU: 417311
Alternatively Known As: Motor Protection Circuit Breaker, MPX3 Motor Breaker, Legrand MPX3 Circuit Breaker, Thermal Magnetic Motor Protector
Technical Specifications
- Rated operating voltage: 220-690 V
- Rated permanent current: 13 A
- Overload release current setting: 9-13 A
- Undelayed short-circuit release adjustment: 169 A
- Rated short-circuit breaking capacity (Icu) at 400 V AC: 50 kA
- Rated operation power at AC-3, 230 V: 3 kW
- Rated operation power at AC-3, 400 V: 5.5 kW
- Number of poles: 3
- Type of electrical connection: Frame clamp
- Degree of protection: IP20
- Control element: Rocker lever
- Device construction: Built-in fixed built-in technique
- Integrated auxiliary switch and under voltage release included
- Dimensions (H x L x W): 94mm x 75mm x 45mm
- Weight: 0.3 kg
Key Features
- Thermomagnetic switch-off technique with thermal overload protection
- Overload release current adjustable from 9 to 13 A
- Short-circuit release adjustment range of 169 A
- Rated short-circuit breaking capacity of 50 kA at 400 V AC
- Compatible with MPX3 auxiliaries
- Integrated auxiliary switch and under voltage release
- Screw terminals capacity from 1 mm² to 10 mm²
- Easy operation via rocker lever
- Compact size for optimized cabinet space
- IP20 degree of protection
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with safety standards and optimal device performance.
Applications
- Protection of 3-phase motors up to 5.5 kW / 415 V
- Tertiary and industrial electrical installations
- Control and signalling in switchboards and power cabinets
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Designed with substance-restriction compliance and environmentally conscious manufacturing processes
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand's official warranty policy for details.
Available Now
The Legrand Motor Protection Circuit Breaker MPX3 32S 9-13A 50KA is available for immediate purchase, ideal for industrial and tertiary motor protection applications.
