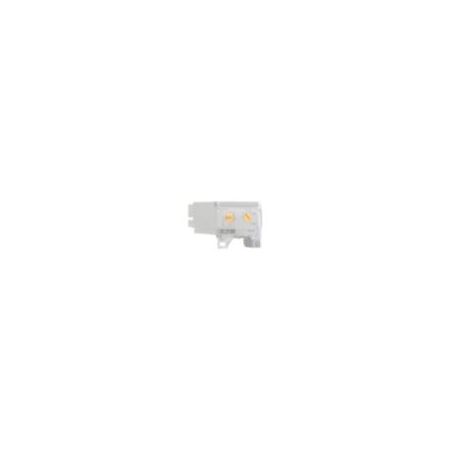

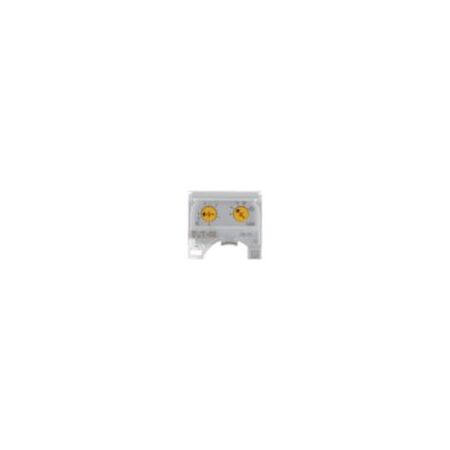

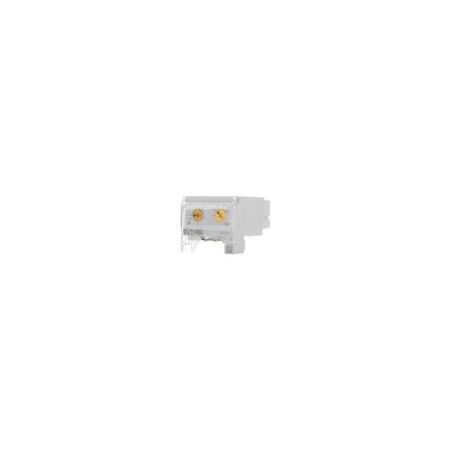

Motor Protection Trip Block | 12 A Overload Release | Three-Pole Design | IP20 by Eaton

BRAND: Eaton
SKU: Y7-121725
$212.00 List price: $264.20
+ −
30 Days Return Delivery Options
The PKE-XTU-12 motor protection trip block features a 12 A overload release and three-pole design—ideal for industrial motor protection applications. Built for reliable performance, it offers protection against overload damage and ensures compliance with electrical standards.

Product Name/Title: Motor Protection Trip Block | 12 A Overload Release | Three-Pole Design | IP20 by Eaton

Brand: Eaton

SKU: Y7-121725

Alternatively Known As: Eaton PKE Trip Block, Motor Protection Trip Block, PKE-XTU-12 Motor Protector, Eaton Motor Overload Relay Accessory

Technical Specifications
  • Rated operational current (Ie): 12 A
  • Overload release current setting range: 3 A to 12 A
  • Rated operational voltage (Ue): up to 690 V AC
  • Number of poles: Three-pole
  • Operating frequency: 60 operations per hour
  • Degree of protection: Terminals IP00, Device IP20
  • Rated impulse withstand voltage (Uimp): 6000 V AC
  • Pollution degree: 3
  • Overvoltage category: III
  • Shock resistance: 25 g mechanical shock, IEC/EN 60068-2-27
  • Temperature compensation: -5 to 40 °C operating range
  • Ambient operating temperature: -25 °C to 55 °C
  • Switching capacity at AC-3 (up to 690 V): 12 A
  • Connection to SmartWire-DT: No
  • Heat dissipation current-dependent: 0.9 W
  • Heat dissipation per pole: 0.3 W
  • Dimensions (H x L x W): 64.2mm x 41.6mm x 45mm
  • Weight: 0.086 kg
Key Features
  • Phase-failure sensitivity according to IEC/EN 60947-4-1
  • Three-pole motor protection trip block
  • Overload release current adjustable from 3 A to 12 A
  • Protection against direct contact when actuated from front (EN 50274)
  • Rated operational voltage up to 690 V AC
  • Self-powered voltage type
  • Mechanical shock resistance of 25 g
  • Operating frequency of 60 operations per hour
  • Temperature compensation from -5 to 40 °C (operating range)
  • Degree of protection: Terminals IP00, Device IP20
Professional Installation Requirements
  • Installation should be performed by a qualified electrician or professional experienced with motor protection devices to ensure compliance with electrical standards and safety.
Applications
  • Industrial motor protection applications
  • Use with PKE12 and PKE32 basic devices
  • Overload and heavy starting duty motor protection
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Enhances motor efficiency by preventing overload damage, reducing energy waste
  • Durable design reduces need for frequent replacements, minimizing waste
Warranty Information

Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.

Available Now

The Eaton Moeller PKE-XTU-12 Trip Block is available for immediate purchase, ideal for industrial motor protection applications.
