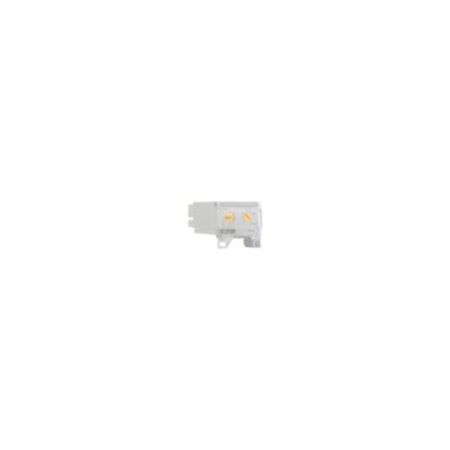

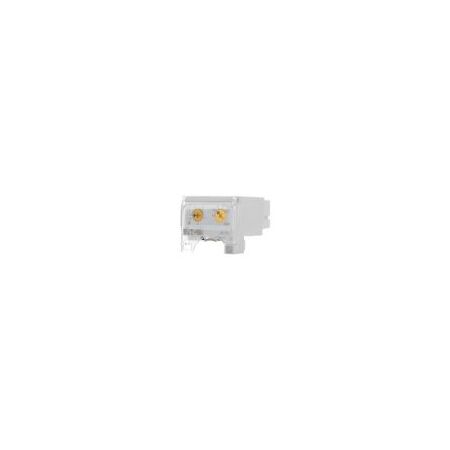

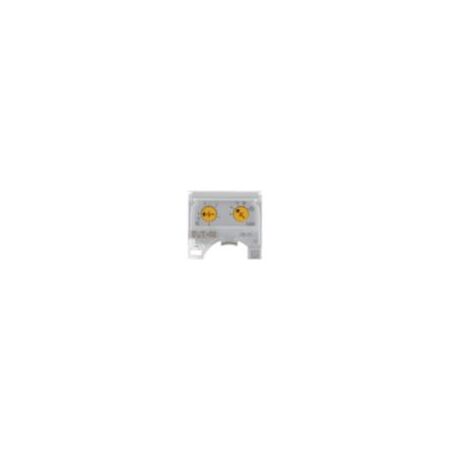

Motor Protection Trip Block | 12 A Rated Current | Three-Pole Design | IP20 Protection by Eaton
The PKE-XTUA-12 motor protection trip block features a rated operational current of 12 A and a three-pole design—ideal for industrial motor protection applications. Built for reliable performance, it offers overload release current adjustable from 3 A to 12 A and integrates seamlessly with SmartWire-DT systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Motor Protection Trip Block | 12 A Rated Current | Three-Pole Design | IP20 Protection by Eaton
Brand: Eaton
SKU: Y7-121729
Alternatively Known As: Eaton PKE Trip Block, Motor Protection Trip Block, PKE-XTUA-12 Motor Protector, Eaton Motor Overload Relay Accessory
Technical Specifications
- Rated operational current (Ie): 12 A
- Overload release current setting range: 3 A to 12 A
- Rated operational voltage (Ue): up to 690 V AC
- Number of poles: Three-pole
- Degree of protection: Device IP20, Terminals IP00
- Operating frequency: 60 operations per hour
- Rated impulse withstand voltage (Uimp): 6000 V AC
- Pollution degree: 3
- Overvoltage category: III
- Shock resistance: 25 g mechanical shock
- Operating temperature range: -25 °C to 55 °C
- Connection to SmartWire-DT: Yes
- Switching capacity at AC-3 (up to 690 V): 12 A
- Protection: Finger and back-of-hand proof (EN 50274)
- Dimensions (H x L x W): 64.2mm x 41.6mm x 45mm
- Weight: 0.086 kg
Key Features
- Motor protection for heavy starting duty
- Phase-failure sensitivity according to IEC/EN 60947-4-1
- Three-pole design
- Overload release current adjustable from 3 A to 12 A
- Connection to SmartWire-DT for advanced control
- Protection against direct contact when actuated from front (EN 50274)
- Rated operational voltage up to 690 V AC
- Rated operational current up to 12 A
- Mechanical shock resistance of 25 g
- Operating temperature range from -25 °C to 55 °C
Professional Installation Requirements
- Installation by a qualified electrician or technician is required to ensure proper integration with motor control systems and compliance with safety standards.
Applications
- Industrial motor protection applications
- Use with PKE12 and PKE32 basic devices
- Integration with SmartWire-DT systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enhances motor efficiency by preventing overload damage
- Reduces downtime and waste by protecting motors from failure
- Supports integration with SmartWire-DT for optimized energy management
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller PKE-XTUA-12 Trip Block is available for immediate purchase, ideal for industrial motor protection and automation applications.
