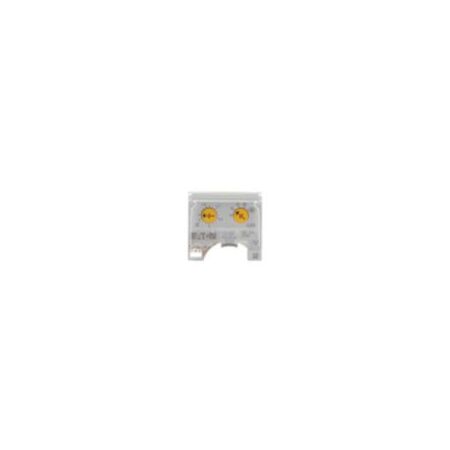

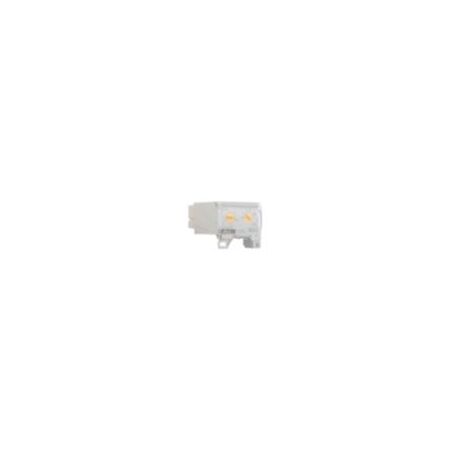

Motor Protection Trip Block | 4 A Rated Current | Three-Pole Design | IP20 Protection by Eaton
The PKE-XTU-4 motor protection trip block features a rated operational current of 4 A and a three-pole design—ideal for industrial motor protection applications. Built for reliable overload protection, it ensures motor efficiency and reduces downtime.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Motor Protection Trip Block | 4 A Rated Current | Three-Pole Design | IP20 Protection by Eaton
Brand: Eaton
SKU: Y7-121724
Alternatively Known As: PKE Trip Block, Motor Protection Trip Block, Eaton Motor Overload Relay Accessory
Technical Specifications
- Rated operational current (Ie): 4 A
- Rated operational voltage (Ue) at AC - max: 690 V
- Overload release current setting range: 1 A to 4 A
- Degree of protection: Device IP20, Terminals IP00
- Rated impulse withstand voltage (Uimp): 6000 V AC
- Operating temperature range: -25 °C to 55 °C
- Shock resistance: 25 g mechanical
- Pollution degree: 3
- Overvoltage category: III
- Number of poles: Three-pole
- Connection to SmartWire-DT: No
- Heat dissipation: 0.6 W current-dependent
- Dimensions (H x L x W): 64.2mm x 41.6mm x 45mm
- Weight: 0.086 kg
Key Features
- Phase-failure sensitivity according to IEC/EN 60947-4-1
- Motor protection with overload release
- Three-pole design
- Delayed short-circuit release approx. 60 ms
- Protection against direct contact when actuated from front (EN 50274)
- Self powered voltage type
- Rated operational current up to 4 A
- Operating frequency up to 60 operations/h
- Shock resistance 25 g mechanical
- Temperature compensation from -5 to 40 °C (operating range)
Professional Installation Requirements
- Installation by a qualified electrician or technician is required to ensure compliance with safety standards and proper integration with PKE12 or PKE32 devices.
Applications
- Industrial motor protection
- Use with PKE12 and PKE32 basic devices
- Overload and heavy starting duty motor protection
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enhances motor efficiency by preventing overload damage
- Reduces downtime and waste by protecting motors from failure
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller PKE-XTU-4 Trip Block is available for immediate purchase, ideal for industrial motor protection applications.
