Motor Protection Trip Block | 4 A Rated Current | Three-Pole Design | IP20 Protection by Eaton

BRAND: Eaton
SKU: Y7-121728
$288.40 List price: $359.40
+ −
30 Days Return Delivery Options

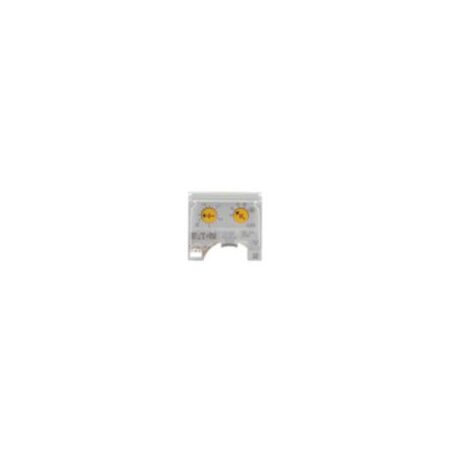

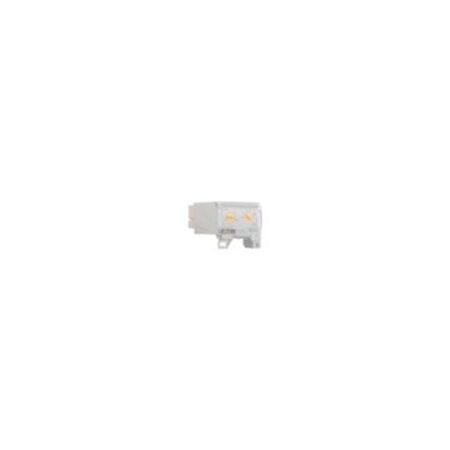

The PKE-XTUA-4 motor protection trip block features a 4 A rated current and three-pole design—ideal for industrial motor protection applications. Built for reliable performance with overload release settings adjustable from 1 A to 4 A, it integrates seamlessly with SmartWire-DT systems.

Product Name/Title: Motor Protection Trip Block | 4 A Rated Current | Three-Pole Design | IP20 Protection by Eaton

Brand: Eaton

SKU: Y7-121728

Alternatively Known As: Eaton PKE Trip Block, Motor Protection Trip Block, PKE-XTUA-4 Motor Protector, Eaton Motor Overload Relay Accessory

Technical Specifications
  • Rated operational current (Ie): 4 A
  • Overload release current setting: 1 A to 4 A
  • Rated operational voltage (Ue): up to 690 V AC
  • Number of poles: Three-pole
  • Degree of protection: Terminals IP00, Device IP20
  • Rated impulse withstand voltage (Uimp): 6000 V AC
  • Operating frequency: 60 operations per hour
  • Shock resistance: 25 g mechanical
  • Temperature compensation: -5 to 40 °C (operating range -25 to 55 °C)
  • Connection to SmartWire-DT: Yes
  • Pollution degree: 3
  • Overvoltage category: III
  • Switching capacity at AC-3 (up to 690 V): 4 A
  • Dimensions (H x L x W): 64.2mm x 41.6mm x 45mm
  • Weight: 0.086 kg
Key Features
  • Motor protection for heavy starting duty
  • Phase-failure sensitivity according to IEC/EN 60947-4-1
  • Three-pole design
  • Connection to SmartWire-DT enabled
  • Overload release current setting adjustable from 1 A to 4 A
  • Finger and back-of-hand proof protection (EN 50274)
  • Rated operational voltage up to 690 V AC
  • Rated operational current 4 A
  • Shock resistance 25 g mechanical
  • Operating frequency 60 operations per hour
  • Temperature compensation from -5 to 40 °C (operating range -25 to 55 °C)
Professional Installation Requirements
  • Installation should be performed by a qualified electrician familiar with motor protection devices and SmartWire-DT integration to ensure compliance with safety standards.
Applications
  • Industrial motor protection applications
  • Use with PKE12 and PKE32 basic devices
  • Integration with SmartWire-DT systems
Standards & Compliance
  • AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Enhances motor efficiency by preventing overload damage
  • Supports smart system integration reducing energy waste
  • Durable design reduces need for frequent replacements
Warranty Information

Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.

Available Now

The Eaton Moeller PKE-XTUA-4 Trip Block is available for immediate purchase, ideal for industrial motor protection and smart system integration.
