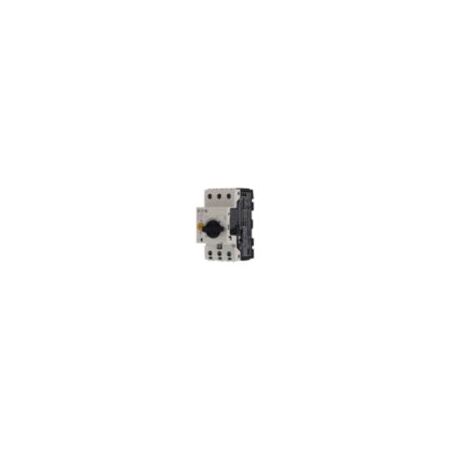

Motor Protective Circuit Breaker | 0.4 A Rated Current | Three-Pole | Screw Terminals by Eaton
Motor protective circuit breaker with a rated current of 0.4 A and three-pole design—ideal for industrial motor protection. Built for commercial electrical installations, it features screw terminal connections and overload release settings for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Motor Protective Circuit Breaker | 0.4 A Rated Current | Three-Pole | Screw Terminals by Eaton
Brand: Eaton
SKU: Y7-72732
Alternatively Known As: Motor protective circuit breaker PKZM0, Motor circuit breaker PKZM0, Eaton PKZM0 breaker, Motor protection switch PKZM0
Technical Specifications
- Rated operational current (Ie): 0.4 A
- Rated operational power at AC-3, 220/230 V, 50 Hz: 0.06 kW
- Rated operational power at AC-3, 380/400 V, 50 Hz: 0.09 kW
- Number of poles: Three-pole
- Connection type: Screw terminals
- Overload release current setting: 0.25 - 0.4 A
- Tripping characteristic: Overload trigger class 10 A
- Rated operational voltage (Ue): up to 690 V
- Short-circuit current rating: up to 65 kA depending on configuration
- Operating frequency: 40 operations per hour
- Operating temperature range: -25 °C to 55 °C
- Shock resistance: 25 g mechanical shock
- Mounting: Snap-on IEC/EN 60715 top-hat rail
- Terminal capacity (flexible with ferrule): 2 x (1 - 6) mm²
- Terminal capacity (solid): 2 x (1 - 6) mm²
- Tightening torque: 1.7 Nm for main cable
- Dimensions (H x L x W): 93mm x 76mm x 45mm
- Weight: 0.243 kg
Key Features
- Phase-failure sensitivity compliant with IEC/EN 60947-4-1 and VDE 0660 Part 102
- Three-pole motor protective circuit breaker
- Screw terminal connections with 1.7 Nm tightening torque
- Can be snapped onto IEC/EN 60715 top-hat rail (7.5 or 15 mm height)
- Rated operational current of 0.4 A with overload release current setting from 0.25 to 0.4 A
- Short-circuit current rating up to 65 kA depending on configuration
- Protection against direct contact when actuated from front (EN 50274)
- Operating temperature range from -25 °C to 55 °C
- Electrical and mechanical lifespan of 100,000 operations
- Shock resistance of 25 g according to IEC/EN 60068-2-27
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into motor control circuits.
Applications
- Motor protection in industrial and commercial electrical installations
- Branch circuit protection for motors with efficiency class IE3
- Group installations requiring manual type E protection
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enhances motor efficiency by protecting against overload and phase failure, reducing energy waste and equipment damage
- Durable design reduces need for frequent replacements, minimizing electronic waste
Warranty Information
Standard Eaton warranty applies; typically covers manufacturing defects for 1-2 years. Refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller PKZM0 Motor-Protective Circuit-Breaker is available for immediate purchase, ideal for industrial motor protection and control applications.
