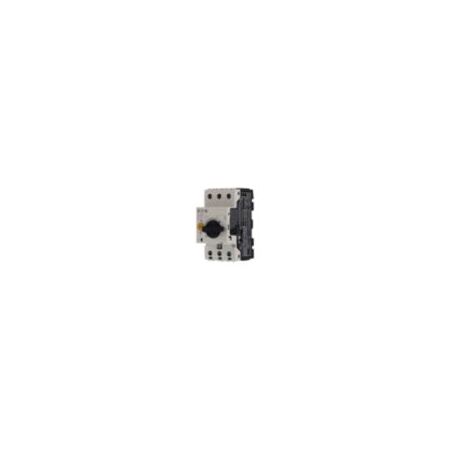

Motor Protective Circuit Breaker PKZM0-12 | 12A Rated Current | Phase-Failure Sensitivity & Manual Operation | Eaton
Protect your motors with the PKZM0-12 motor protective circuit breaker, featuring a 12A rated current and phase-failure sensitivity—ideal for industrial and commercial applications. Built for efficiency, it offers a manual operation turn button and high short-circuit current rating, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Motor Protective Circuit Breaker PKZM0-12 | 12A Rated Current | Phase-Failure Sensitivity & Manual Operation | Eaton
Brand: Eaton
SKU: Y7-278486
Alternatively Known As: Motor Protective Circuit Breaker PKZM0-12, Eaton Motor Circuit Breaker, PKZM0 Motor Protector, 3-pole Motor Breaker 8-12A
Technical Specifications
- Dimensions (H x L x W): 93mm x 76mm x 45mm
- Weight: 0.295 kg
Key Features
- Three-pole motor-protective circuit breaker with phase-failure sensitivity
- Turn button actuator for manual operation
- Rated operational current of 12 A with adjustable overload release current from 8 to 12 A
- High short-circuit current rating up to 65 kA depending on voltage and configuration
- Suitable for mounting on IEC/EN 60715 top-hat rail
- Protection against direct contact when actuated from front (finger and back-of-hand proof)
- Electrical lifespan of 100,000 operations at 400V AC-3
- Mechanical lifespan of 100,000 operations
- Operating temperature range from -25 °C to 55 °C
- Shock resistance of 25 g according to IEC/EN 60068-2-27
- Terminal capacity supports flexible and solid cables from 1 to 6 mm²
- Overvoltage category III and pollution degree 3
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper device operation.
Applications
- Motor protection in industrial and commercial electrical installations
- Branch circuit protection for motors with efficiency class IE3
- Group installations requiring manual type E branch circuit protection
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enables efficient motor protection reducing energy waste and equipment damage
- Supports motors with high efficiency class IE3, promoting energy savings
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller PKZM0-12 Motor-Protective Circuit Breaker is available now for immediate purchase. Ideal for industrial motor protection and branch circuit applications.
