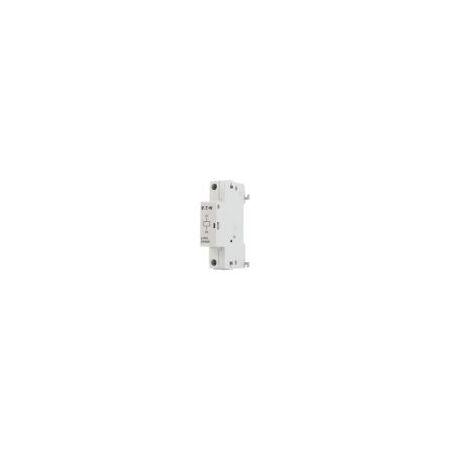

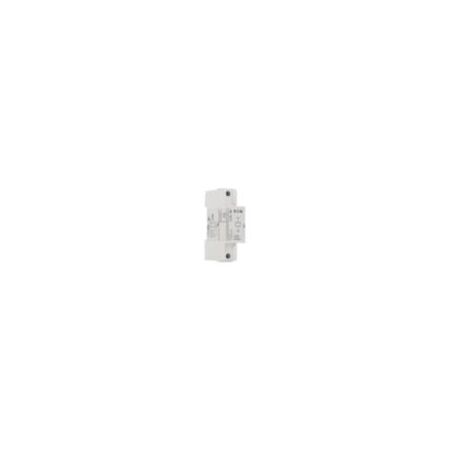

Motor Safety Switch Shunt Release | 24V DC | Secure Screw Terminal Connections | CE & UL Certified by Eaton
The A-PKZ0(24VDC) motor safety switch shunt release operates at 24V DC, featuring secure screw terminal connections and compliance with CE and UL certifications. Ideal for industrial motor control applications, it enhances safety and efficiency while reducing energy waste.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Motor Safety Switch Shunt Release | 24V DC | Secure Screw Terminal Connections | CE & UL Certified by Eaton
Brand: Eaton
SKU: Y7-73200
Alternatively Known As: PKZ0 Shunt Release, Motor Safety Switch Shunt Release, Eaton Motor Protection Accessory
Technical Specifications
- Voltage Type: DC, 24 V DC rated control supply voltage
- Power Consumption: 3 W (pick-up), 0.5 W (sealing) at DC
- Terminal Capacity: 2 x (0.75 - 2.5) mm² solid/flexible with ferrule, 1 x (0.75 - 2.5) mm²
- Operational Voltage Range: 0.7 - 1.1 x Us (DC and AC short-time operation)
- Ambient Operating Temperature: -25 °C to 55 °C
- Mounting Position: Left side of motor protection switch
- Number of Contacts: None (0 change-over, normally closed, or normally open contacts)
- Certifications: CE, IEC/EN 60947-4-1, UL, CSA
- Dimensions (H x L x W): 90mm x 68mm x 24mm
- Weight: 0.126 kg
Key Features
- Operates at 24 V DC voltage
- Screw terminal connections for secure wiring
- Can be fitted to the left side of the motor protection switch
- Meets corrosion resistance and thermal stability requirements
- Complies with multiple international certifications including CE, IEC/EN 60947-4-1, UL, and CSA
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with motor protection equipment to ensure compliance with safety standards and proper operation.
Applications
- Used with motor protective circuit-breakers
- Suitable for motor safety switch applications
- Industrial motor control and protection systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enhances motor safety and efficiency, reducing energy waste and potential equipment damage
Warranty Information
Warranty details are provided by Eaton and typically cover manufacturing defects; please refer to Eaton's official warranty policy.
Available Now
The Eaton A-PKZ0(24VDC) Shunt Release is available for immediate purchase, ideal for industrial motor safety switch applications.
