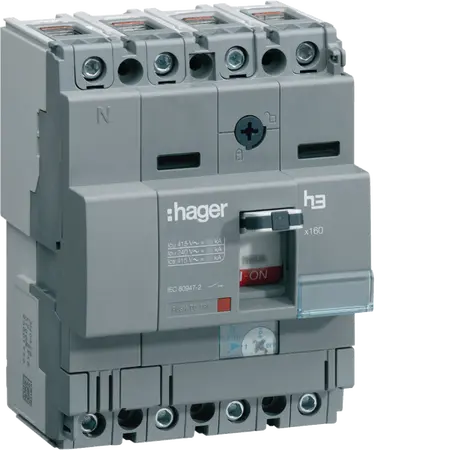

Moulded Case Circuit Breaker h3 x160 TM ADJ 4P4D N0-100% 100A 25kA CTC

Moulded Case Circuit Breaker 100A | 25kA Breaking Capacity | 4 Poles | IP4X by Hager

BRAND: :hager

SKU: HHA101U

$1,066.00 List price: $1,363.10

+ −

30 Days Return Delivery Options

Moulded case circuit breaker with 100A rated current and 25kA breaking capacity—ideal for industrial, commercial, and residential applications. Built for safety with IP4X protection and versatile four-pole design.

Description
Attachments

Product Name/Title: Moulded Case Circuit Breaker h3 x160 TM ADJ 4P4D N0-100% 100A 25kA CTC

Brand: Hager

SKU: HHA101U

Alternatively Known As: MCCB, Moulded Case Circuit Breaker, Circuit Breaker 100A

Technical Specifications

Rated ultimate short-circuit breaking capacity Icu under 400V AC: 25kA
Rated service breaking capacity Ics under 230V AC: 25kA
Rated operational voltage Ue: 220 - 415V
Frequency: 50 - 60Hz
Rated insulation voltage Ui: 690V
Total power loss under IN: 35.70W
Electric endurance: 1000 cycles
Mechanical operations: 4000 cycles
Connection type: Screw terminal
Flexible conductor cross-section: 4 - 70 mm²
Rigid conductor cross-section: 4 - 95 mm²
Dimensions (H x L x W): 130mm x 68mm x 100mm
Weight: 2.5 kg

Key Features

Rated current of 100A with a breaking capacity of 25kA at 400V AC.
Four poles for versatile applications.
IP4X ingress protection for enhanced safety.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in factories and manufacturing plants
Commercial: Electrical systems in office buildings and retail spaces
Residential: Main electrical panels in homes

Standards & Compliance

Complies with AS/NZS 60947 for safety and performance standards.

Environmental Benefits

RoHS and REACH compliant, contributing to reduced environmental impact.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager Moulded Case Circuit Breaker 100A 25kA is available now for immediate purchase. Ideal for industrial, commercial, and residential electrical systems.

HHA101U (HHA101U, 183 Kb) [Download]

reach_declaration_HHA101U11.pdf (reach_declaration_HHA101U11.pdf, 103 Kb) [Download]

rohs_declaration_HHA101U11.pdf (rohs_declaration_HHA101U11.pdf, 104 Kb) [Download]

(ID1_X160_H3_6LE001633AB_CO_WEB.pdf, 8,716 Kb) [Download]

(ID1_X160_6H5523E_WEB.pdf, 12,290 Kb) [Download]

(DECLARATION_25_1426_03_25.pdf, 431 Kb) [Download]

(DECLARATION_25_3174_03_25.pdf, 435 Kb) [Download]
