Moulded Case Circuit Breaker 100A | 25kA Breaking Capacity | IP4X Safety by Hager
Moulded case circuit breaker with 100A rated current and 25kA breaking capacity—ideal for residential and commercial safety. Built for fast tripping response and enhanced protection with IP4X ingress safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

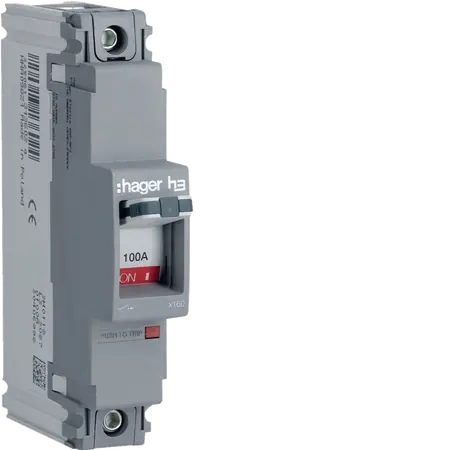

Product Name/Title: Moulded Case Circuit Breaker X160 1P 25kA 100A
Brand: Hager
SKU: HHA098Z
Alternatively Known As: MCCB, Moulded Case Circuit Breaker, Circuit Breaker 100A
Technical Specifications
- Rated ultimate short-circuit breaking capacity Icu: 25 kA
- Rated service breaking capacity Ics: 20 kA
- Number of poles: 1
- Frequency: 50 - 60 Hz
- Rated impulse withstand voltage Uimp: 8000 V
- Rated insulation voltage Ui: 690 V
- Total power loss under IN: 8.40 W
- Electric endurance: 1000 cycles
- Mechanical operations: 4000 cycles
- Nominal tightening torque: 6 - 6 Nm
- Type of connection: Screw terminal
- Dimensions (H x L x W): 150mm x 100mm x 100mm
- Weight: 1.5 kg
Key Features
- Rated current of 100 A with a breaking capacity of 25 kA.
- Fast tripping response time of 10 ms.
- IP4X ingress protection for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Designed for energy efficiency, reducing electrical waste and enhancing safety.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Moulded Case Circuit Breaker X160 1P 25kA 100A is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
