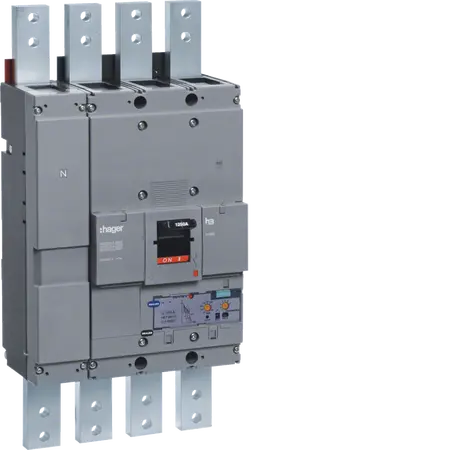

Moulded Case Circuit Breaker 1250A | 4P 50kA | Adjustable Settings | IP4X by Hager

BRAND: :hager
SKU: HNF981H
$11,707.40 List price: $14,970.10
+ −
30 Days Return Delivery Options
Moulded case circuit breaker with 1250A rated current and 50kA breaking capacity—ideal for industrial and commercial power distribution. Built for safety with 4 poles and adjustable settings, offering robust electrical protection.

Product Name/Title: Moulded Case Circuit Breaker h1600 4P 50kA 1250A LSI

Brand: Hager

SKU: HNF981H

Alternatively Known As: MCCB, Moulded Case Circuit Breaker, Circuit Breaker 1250A

Technical Specifications
  • Rated ultimate short-circuit breaking capacity Icu under 230 V AC: 100 kA
  • Rated ultimate short-circuit breaking capacity Icu under 240 V AC: 100 kA
  • Rated ultimate short-circuit breaking capacity Icu under 400 V AC: 50 kA
  • Rated impulse withstand voltage Uimp: 8000 V
  • Rated insulation voltage Ui: 800 V
  • Rated operational voltage Ue: 220 - 690 V
  • Frequency: 50 - 60 Hz
  • Ingress Protection (IP) class: IP4X
  • Operating temperature: -25 - 70 °C
  • Dimensions (H x L x W): 300mm x 150mm x 200mm
  • Weight: 10 kg
Key Features
  • Rated current of 1250 A with a breaking capacity of 50 kA under 400 V AC.
  • 4 poles with short-circuit protection and adjustable settings.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in manufacturing facilities
  • Commercial: Electrical protection in commercial buildings
  • General: Suitable for various electrical installations requiring circuit protection
Standards & Compliance
  • Complies with AS/NZS 60947 for safety and performance standards.
Environmental Benefits
  • Designed to improve environmental performance by reducing carbon footprint.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Moulded Case Circuit Breaker H1600 4P 50kA 1250A LSI is available now for immediate purchase. Ideal for industrial and commercial electrical protection.

HNF981H (HNF981H, 147 Kb) [Download]

reach_declaration_HNF981H1.pdf (reach_declaration_HNF981H1.pdf, 103 Kb) [Download]

rohs_declaration_HNF981H1.pdf (rohs_declaration_HNF981H1.pdf, 104 Kb) [Download]

(ID1_H1600_6H5570B_WEB.pdf, 3,710 Kb) [Download]

(DECLARATION_22_3187_06_22.pdf, 287 Kb) [Download]
