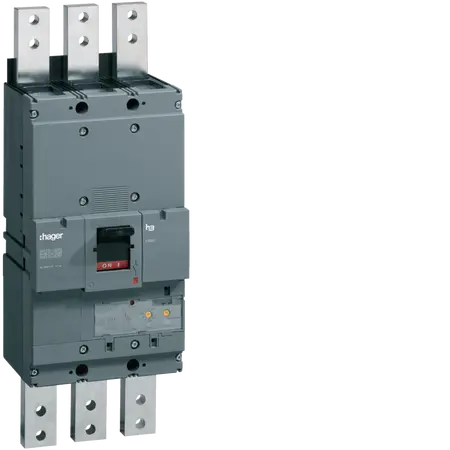

Moulded Case Circuit Breaker 1250A | 50kA | 3P LSI | Fixed Built-In by Hager

BRAND: :hager
SKU: HNF980H
$9,951.70 List price: $12,725.10
+ −
30 Days Return Delivery Options
Moulded case circuit breaker with 1250A rated current and 50kA breaking capacity—ideal for industrial and commercial power distribution. Built for enhanced safety with fast tripping response and fixed built-in construction.

Product Name/Title: Moulded Case Circuit Breaker h1600 3P 50kA 1250A LSI

Brand: Hager

SKU: HNF980H

Alternatively Known As: MCCB, Moulded Case Circuit Breaker, Circuit Breaker 1250A

Technical Specifications
  • Rated ultimate short-circuit breaking capacity Icu under 230 V AC: 100 kA
  • Rated ultimate short-circuit breaking capacity Icu under 240 V AC: 100 kA
  • Rated ultimate short-circuit breaking capacity Icu under 400 V AC: 50 kA
  • Rated impulse withstand voltage Uimp: 8000 V
  • Rated insulation voltage Ui: 800 V
  • Rated operational voltage Ue: 220 - 690 V
  • Frequency: 50 - 60 Hz
  • Ingress Protection (IP) class: IP4X
  • Operating temperature: -25 - 70 °C
  • Dimensions (H x L x W): 300mm x 150mm x 200mm
  • Weight: 10 kg
Key Features
  • Rated current of 1250 A with a breaking capacity of 50 kA under 400 V AC.
  • Fast tripping response time of 10 ms for enhanced safety.
  • Fixed built-in construction type for reliable performance.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in manufacturing facilities
  • Commercial: Electrical systems in large buildings
  • General: Protection of electrical circuits from overloads and short circuits
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
  • Designed to reduce carbon footprint and improve environmental performance.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Moulded Case Circuit Breaker H1600 3P 50kA 1250A LSI is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

HNF980H (HNF980H, 114 Kb) [Download]

reach_declaration_HNF980H1.pdf (reach_declaration_HNF980H1.pdf, 103 Kb) [Download]

rohs_declaration_HNF980H1.pdf (rohs_declaration_HNF980H1.pdf, 104 Kb) [Download]

(ID1_H1600_6H5570B_WEB.pdf, 3,710 Kb) [Download]

(DECLARATION_22_3187_06_22.pdf, 287 Kb) [Download]
