Home/Electrical/Switchgear/Circuit Breakers/Moulded Case Circuit Breaker (MCCB)/Moulded Case Circuit Breaker 1250A | 70kA | 4P LSI | IP4X by Hager

Trade Discount 22%

Moulded Case Circuit Breaker h1600 4P 70kA 1250A LSI

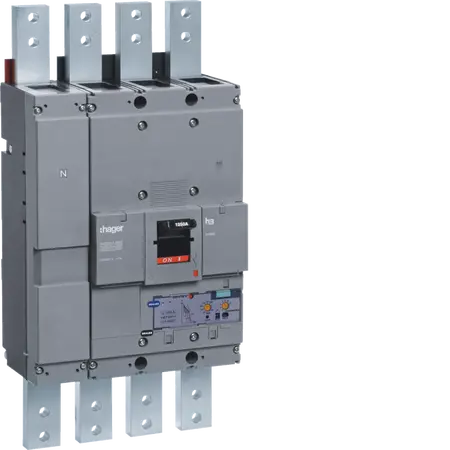

Moulded Case Circuit Breaker 1250A | 70kA | 4P LSI | IP4X by Hager

BRAND: :hager

SKU: HEF981H

$14,511.90 List price: $18,556.20

+ −

30 Days Return Delivery Options

Moulded case circuit breaker with 1250A rated current and 70kA breaking capacity—ideal for industrial and commercial power distribution. Built for safety and efficiency, with 4 poles and IP4X protection.

Description
Attachments

Product Name/Title: Moulded Case Circuit Breaker h1600 4P 70kA 1250A LSI

Brand: Hager

SKU: HEF981H

Alternatively Known As: MCCB, Moulded Case Circuit Breaker, Circuit Breaker 1250A

Technical Specifications

Rated ultimate short-circuit breaking capacity Icu under 400 V AC: 70 kA
Rated operational voltage Ue: 220 - 690 V
Rated insulation voltage Ui: 800 V
Frequency: 50 - 60 Hz
Ingress Protection (IP) class: IP4X
Operating temperature: -25 - 70 °C
Nominal tightening torque: 65 Nm
Dimensions (H x L x W): 300mm x 150mm x 200mm
Weight: 10 kg

Key Features

Rated current of 1250 A with a breaking capacity of 70 kA under 400 V AC.
4 poles with a toggle control/operation element.
Fast tripping response time of 10 ms.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical protection in commercial buildings
General: Suitable for various electrical installations requiring circuit protection

Standards & Compliance

Complies with AS/NZS 3000 for electrical installations.

Environmental Benefits

Designed to improve environmental performance by reducing carbon footprint.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Moulded Case Circuit Breaker H1600 4P 70kA 1250A LSI is available now for immediate purchase. Ideal for industrial and commercial electrical protection.

HEF981H (HEF981H, 138 Kb) [Download]

reach_declaration_HEF981H1.pdf (reach_declaration_HEF981H1.pdf, 103 Kb) [Download]

rohs_declaration_HEF981H1.pdf (rohs_declaration_HEF981H1.pdf, 104 Kb) [Download]

(ID1_H1600_6H5570B_WEB.pdf, 3,710 Kb) [Download]

(DECLARATION_22_3187_06_22.pdf, 287 Kb) [Download]
