Moulded Case Circuit Breaker 125A | 4P 40kA | IP4X Protection by Hager
Moulded case circuit breaker with 125A rated current and 40kA short-circuit capacity—ideal for industrial, commercial, and residential power distribution. Built for safety with IP4X protection and versatile four-pole design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

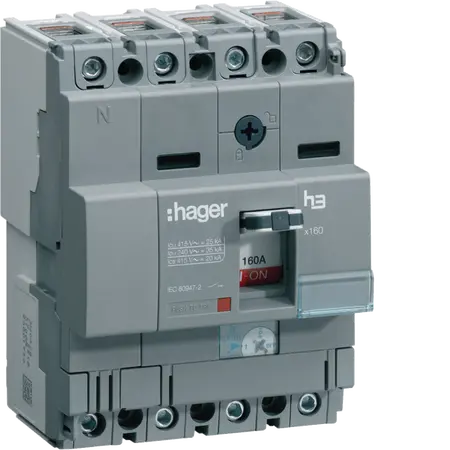

Product Name/Title: Moulded Case Circuit Breaker x160 4P 40kA 125A
Brand: Hager
SKU: HNA126U
Alternatively Known As: MCCB, Moulded Case Breaker, Circuit Breaker 125A
Technical Specifications
- Rated current: 125 A
- Short-circuit breaking capacity: 40 kA (400 V AC), 85 kA (240 V AC)
- Number of poles: 4
- Frequency: 50 - 60 Hz
- Rated insulation voltage: 690 V
- Rated operational voltage: 220 - 415 V
- Total power loss under IN: 33 W
- Electric endurance: 1000 cycles
- Mechanical operations: 4000
- Ingress Protection (IP) class: IP4X
- Connection: Screw terminal, flexible conductor 4 - 70 mm², rigid conductor 4 - 95 mm²
- Nominal tightening torque: 6 - 6 Nm
- Dimensions (H x L x W): 100mm x 150mm x 200mm
- Weight: 5 kg
Key Features
- Rated current of 125A with a short-circuit breaking capacity of 40kA.
- Four poles for versatile applications.
- IP4X ingress protection for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in factories and manufacturing plants
- Commercial: Electrical systems in office buildings and retail spaces
- Residential: Main electrical panels in homes
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Designed for energy efficiency, reducing overall power consumption.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Moulded Case Circuit Breaker x160 4P 40kA 125A is available now for immediate purchase. Ideal for industrial, commercial, and residential electrical systems.
