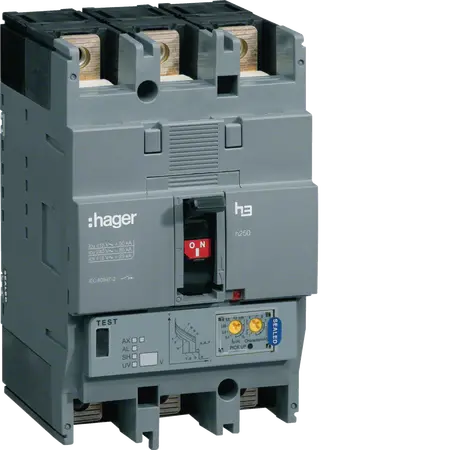

Moulded Case Circuit Breaker 125A | 70kA | LSI Trip Unit | IP4X by Hager
Moulded case circuit breaker with 125A rated current and 70kA short-circuit capacity—ideal for industrial, commercial, and residential power distribution. Built for enhanced protection with LSI trip unit and IP4X ingress protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Moulded Case Circuit Breaker h250 3P 70kA 125A LSI
Brand: Hager
SKU: HEC125H
Alternatively Known As: MCCB, Circuit Breaker, Moulded Case Breaker
Technical Specifications
- Rated current: 125 A
- Short-circuit breaking capacity Icu under 400 V AC: 70 kA
- Short-circuit breaking capacity Icu under 240 V AC: 85 kA
- Number of poles: 3
- Frequency: 50 - 60 Hz
- Rated impulse withstand voltage Uimp: 8000 V
- Rated insulation voltage Ui: 800 V
- Magnetic protection trip time: 100 - 200 ms
- Total power loss under IN: 18.30 W
- Electric endurance: 1000 cycles
- Mechanical operations: 4000
- Operating temperature: -25 - 70 °C
- Cross-section flexible conductor: 35 - 150 mm²
- Cross-section rigid conductor: 35 - 185 mm²
- Nominal tightening torque: 12 - 12 Nm
- Dimensions (H x L x W): 300mm x 150mm x 200mm
- Weight: 5 kg
Key Features
- Rated current of 125 A with a short-circuit breaking capacity of 70 kA.
- LSI trip unit for enhanced protection.
- IP4X ingress protection for reliable performance.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical protection in commercial buildings
- Residential: Main electrical protection in homes
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Moulded Case Circuit Breaker H250 3P 70kA 125A LSI is available now for immediate purchase. Ideal for industrial, commercial, and residential applications.
