Moulded Case Circuit Breaker 1600A | 50kA Breaking Capacity | IP4X Protection by Hager
Moulded case circuit breaker with 1600A rated current and 50kA breaking capacity—ideal for industrial and commercial power distribution. Built for enhanced safety with fast tripping response and IP4X protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

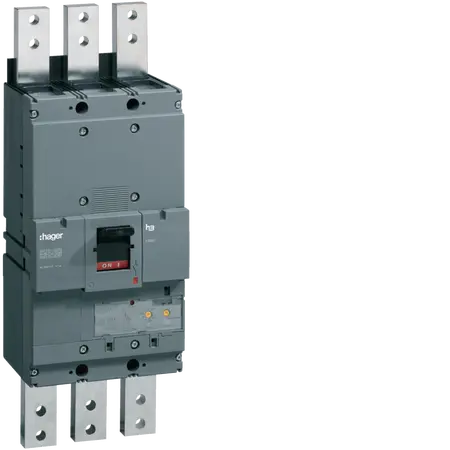

Product Name/Title: Moulded Case Circuit Breaker h1600 3P 50kA 1600A LSI
Brand: Hager
SKU: HNF990H
Alternatively Known As: MCCB, Moulded Case Circuit Breaker, Circuit Breaker 1600A
Technical Specifications
- Rated ultimate short-circuit breaking capacity Icu under 230 V AC: 100 kA
- Rated ultimate short-circuit breaking capacity Icu under 240 V AC: 100 kA
- Rated ultimate short-circuit breaking capacity Icu under 400 V AC: 50 kA
- Rated operational voltage Ue: 220 - 690 V
- Frequency: 50 - 60 Hz
- Operating temperature: -25 - 70 °C
- Nominal tightening torque: 65 Nm
- Electric endurance: 1000 cycles
- Mechanical operations: 4000 cycles
- Dimensions (H x L x W): 200mm x 150mm x 300mm
- Weight: 10 kg
Key Features
- Rated current of 1600 A with a breaking capacity of 50 kA under 400 V AC.
- Fast tripping response time of 10 ms for enhanced safety.
- IP4X ingress protection for reliable performance in various environments.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in large buildings
- General: Protection of electrical circuits from overloads and short circuits
Standards & Compliance
- Complies with AS/NZS 60947 for safety and performance standards.
Environmental Benefits
- RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager Moulded Case Circuit Breaker h1600 3P 50kA 1600A LSI is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
